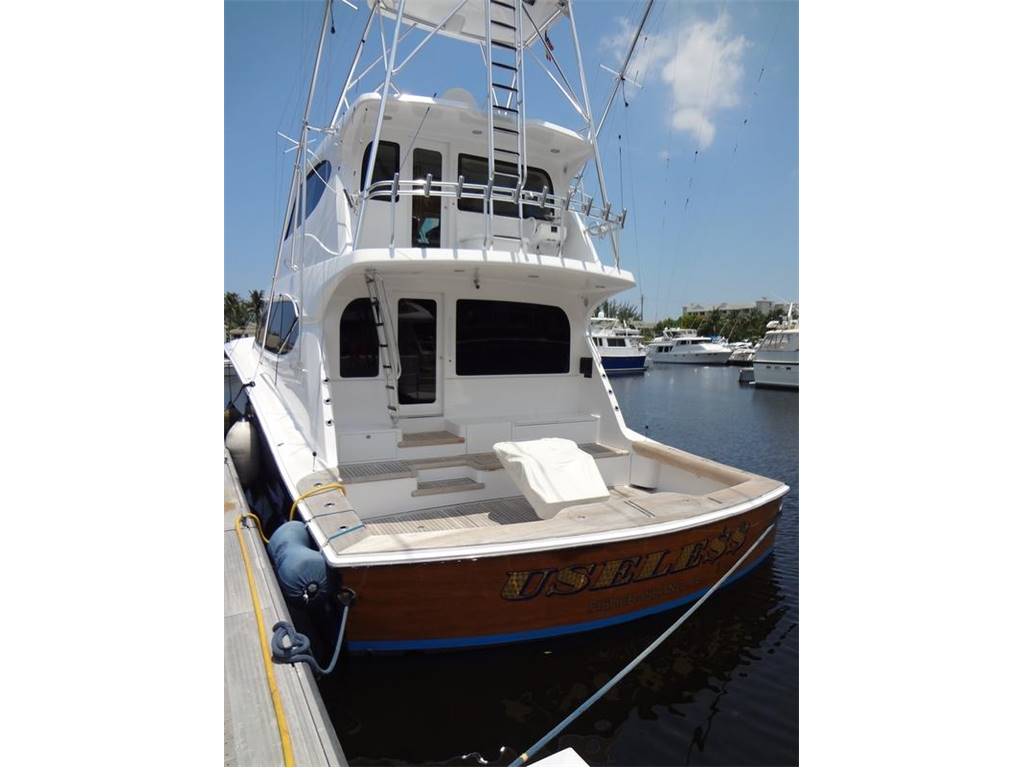

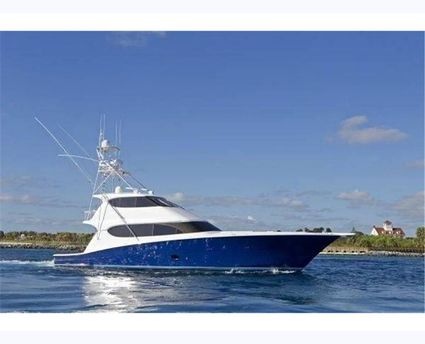

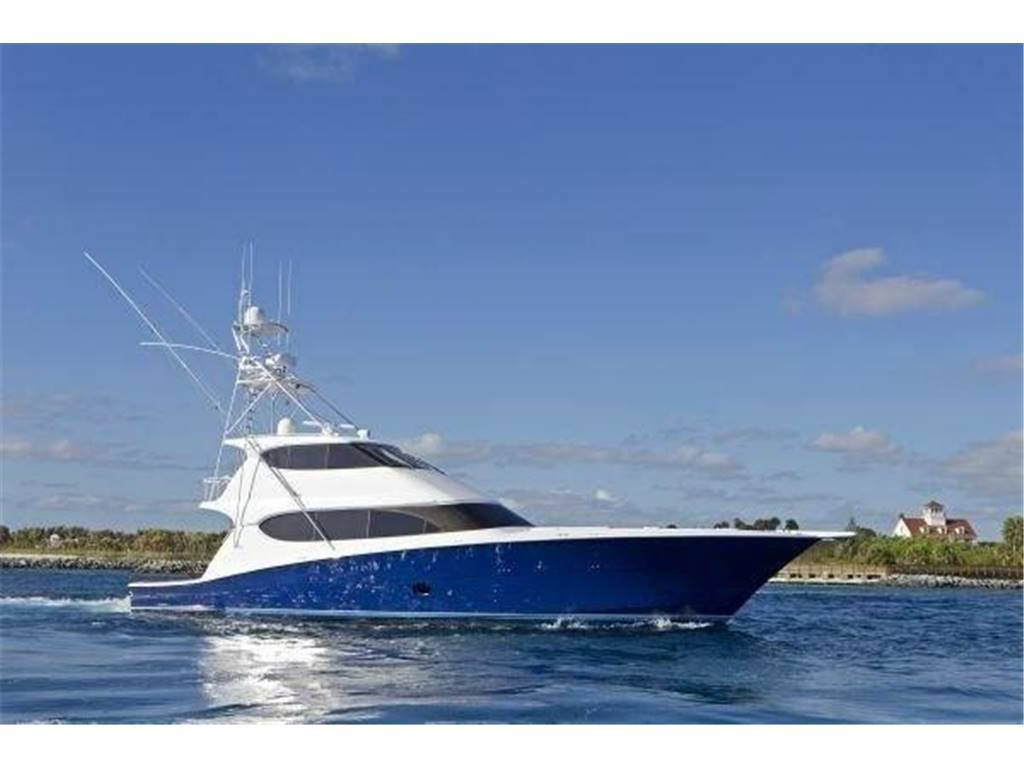

Hatteras 77 convertible (2008)

Notas de la instrumentación

Mechanical Equipment

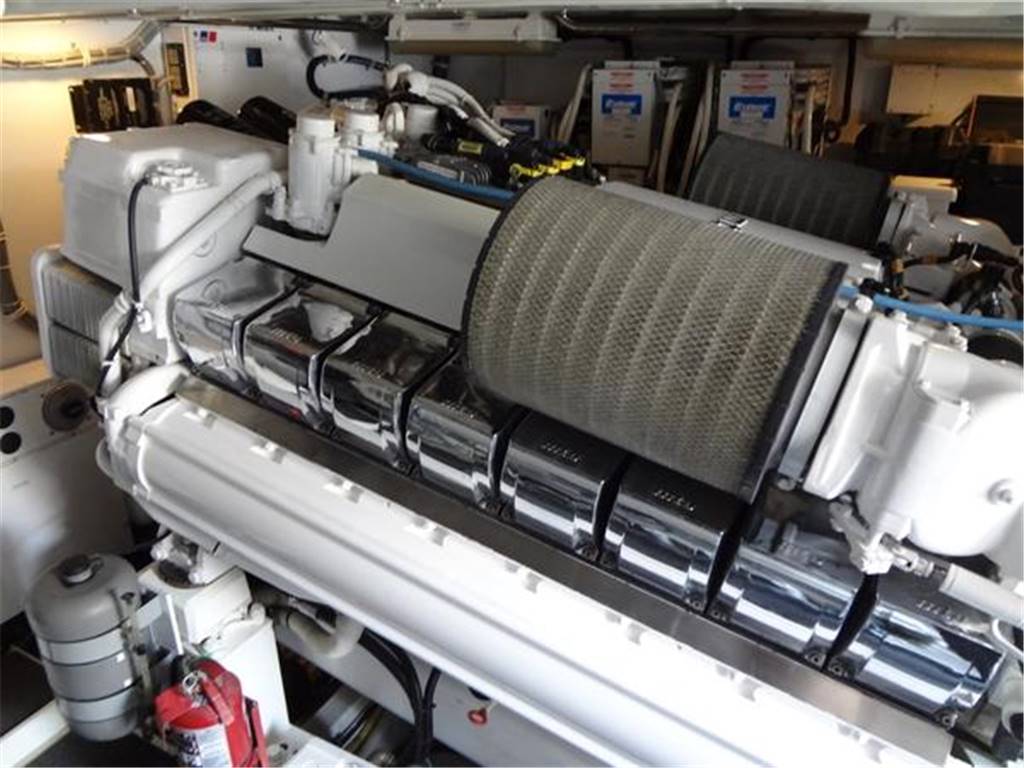

? Twin MTU 16V M93's @2,400 hp each, Common Rail
? ZF 3360 gear boxes
? AC compressed air system
? 9 x 24v Bilge & sump pumps, 7 @3700 gph and 2 @2000 gph
? 50 gal. Electric water heater
? Reversible oil changing system for engines, gear & generator
? A/C compressors & pumps
? Isolated discharge sea chests
? Monitoring consoles for mains w/all gauges & start/stop switches
? Fiberglass fuel, water & holding tanks
? Electric fuel transfer system

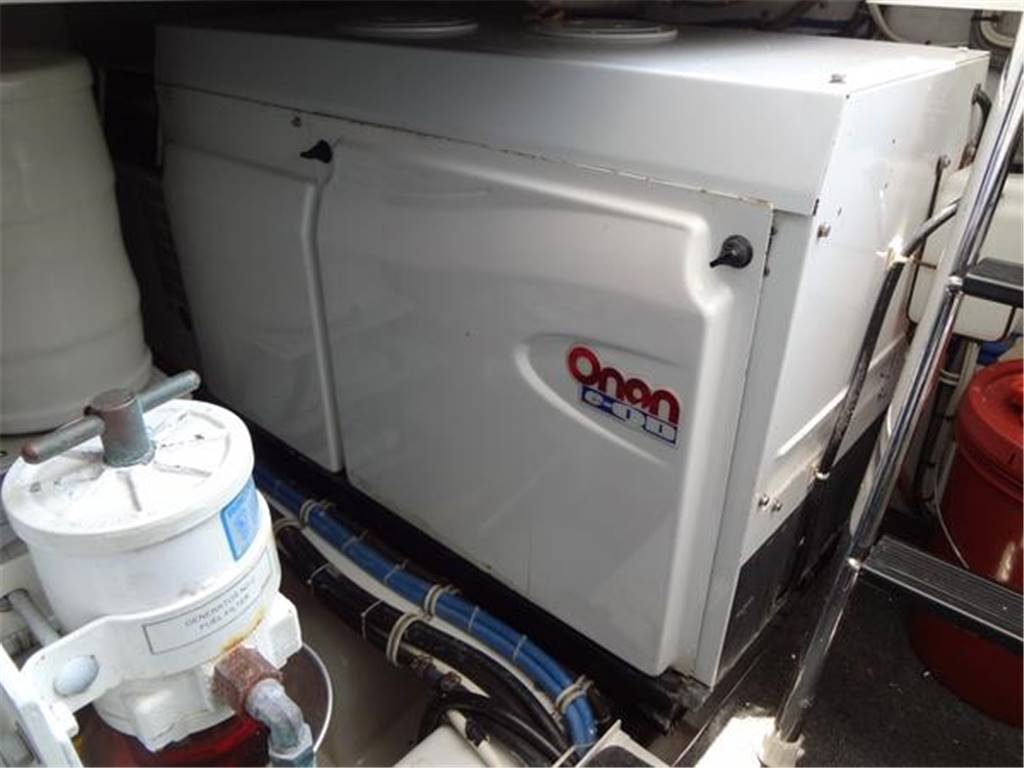

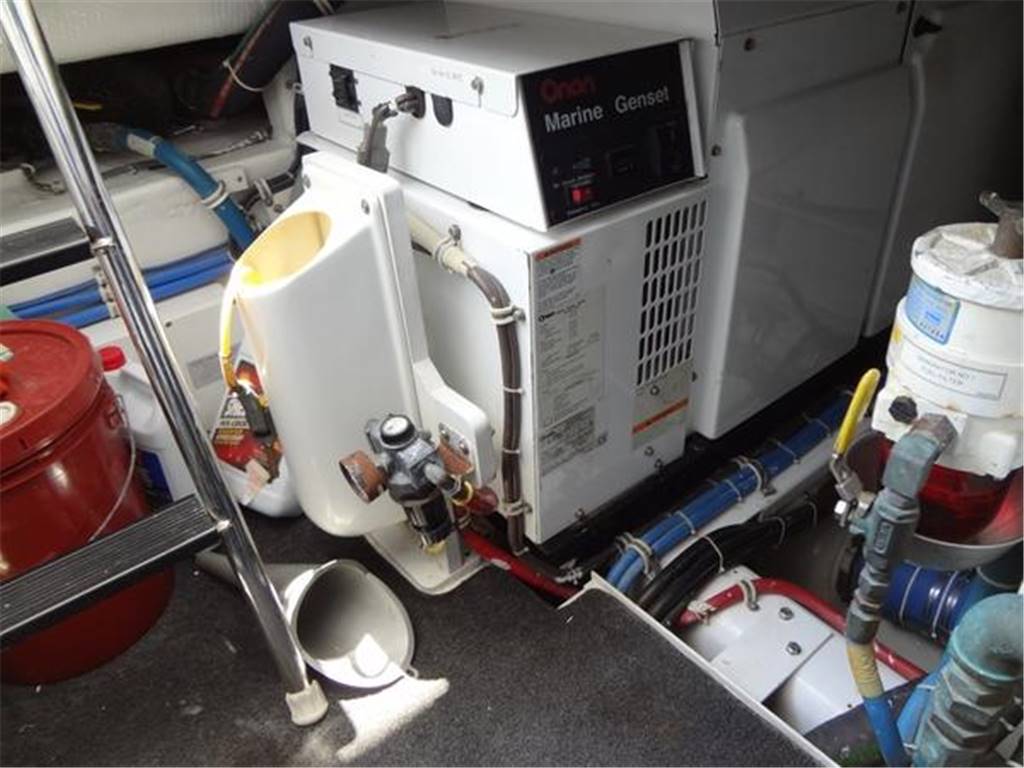

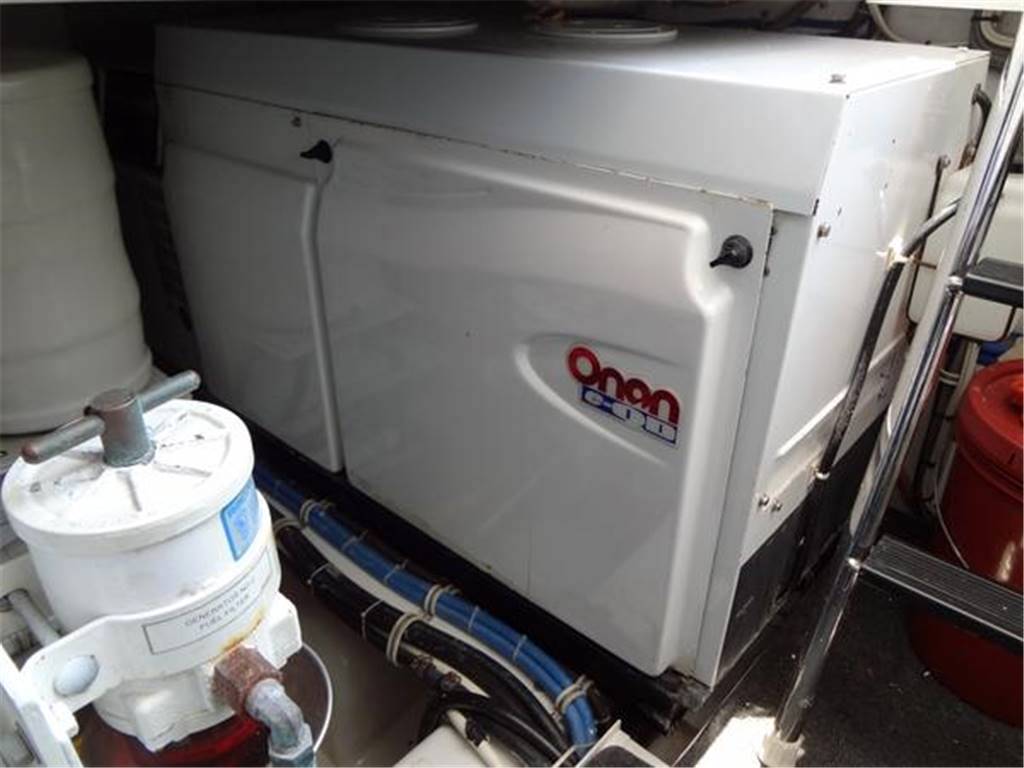

? 2 x 27.5kW Onan generators w/remote start & sound shield
? Watermaker
? Freshwater back up pump
? Water delivery kit
? Pick up sea chests
? Back up sea water pump
? Custom bow thruster controls incorporated into engine control levers at both helm stations

Electrical System
? 2 x 27.5kW Onan generators
? 2 x 24v heavy duty battery banks
? Gel/lead acid compatible 240v aut/programmable battery charger
? 118k BTU Reverse cycle heat and air w/individual controls
? Computer controlled Ethernet monitoring system w/LCD touch screen display
? 2 x 240v, 100 amp, shore cords

Communication, Navigation & Entertainment Systems
? MTU engine steering controls
? 25kW Furuno radar transceiver
? Furuno 6' open array antenna
? Furuno PB100 Ultrasonic weather station sensor
? Simrad autopilot
? ICOM 640 VHF
? Raymarine CAM 100 engine room camera

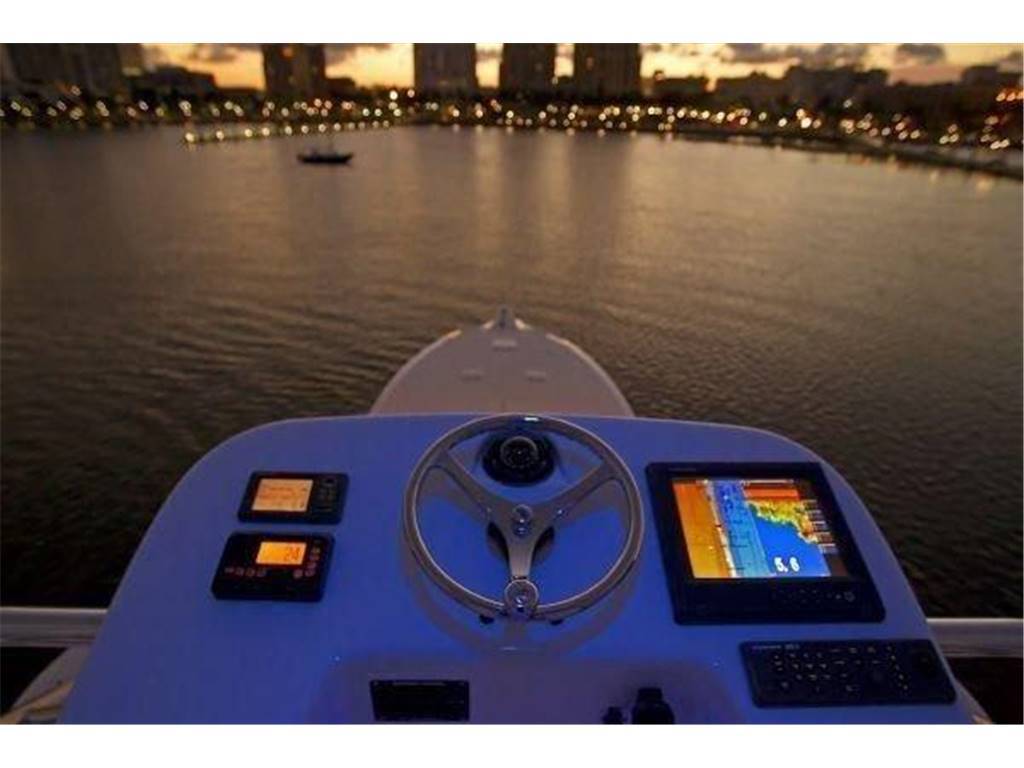

? 2 x Furuno Navnet chartplotter/fish finder w/7" display (tower)
? ICOM IC-HM162SW remote microphone
? Furuno Navnet VX2 chart plotter (aft bridge)
? VEI Nav computer
? VEI 17" plotter display
? VEI 17" radar display
? Furuno BBFF3 Network sounder
? VEI 17" sounder display
? VEI 17" GPS and plotter display
? ICOM M604 VHF
? Latham sportfish camera
? Simrad AP26 2nd station (aft bridge)
? Furuno Navnet VX2 radar/plotter
? Furuno FA AIS transponder w/4.5" display
? VEI DM Series 17" camera display
? 3 x Furuno RD30 digital depth/temp display (PH, aft bridge, tower)
? Panasonic Control Unit, Cordless phone & Speaker phone
? Tellar Tri-mode cell phone
? Carlisle & Finch night finder searchlight and thermal camera
? Furuno Auto Plotter & Digital heading sensor
? SEATEL Coastal 24 SAT TV system
? Radio Shack video amplifier
? ICOM M422 VHF/hailer (tower)

Notas de armamento

Deck Equipment

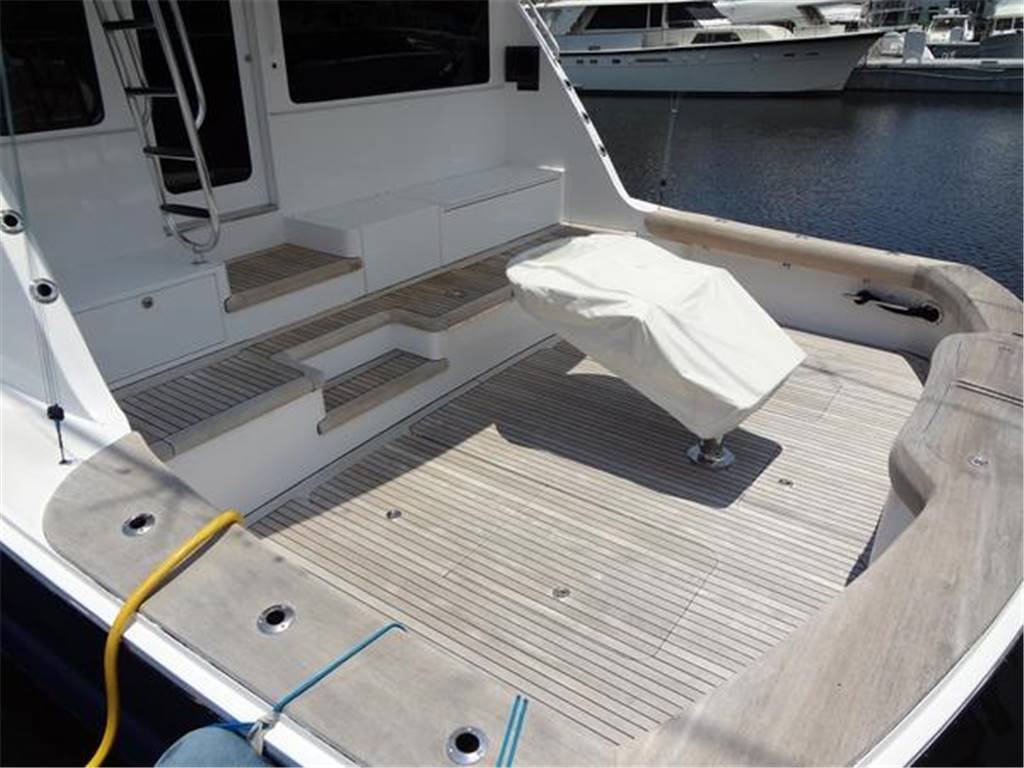

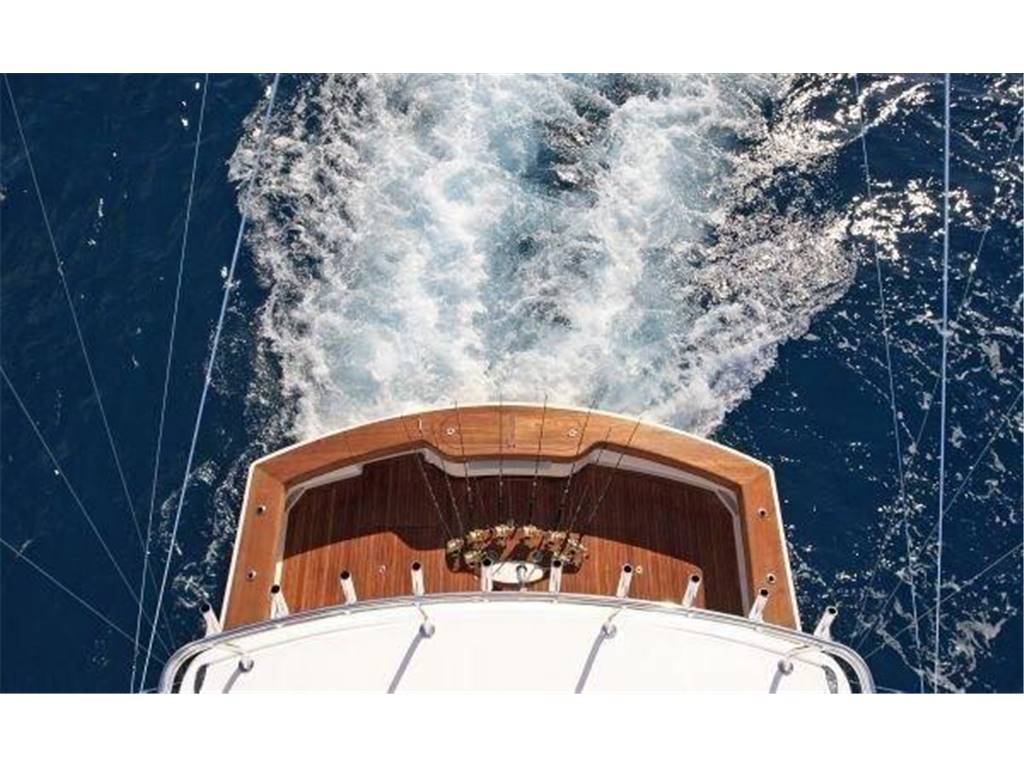

? 192 sq ft. cockpit w/teak deck
? 25 ft. Mezzanine seating
? Polished anodized aluminum ladder to flybridge

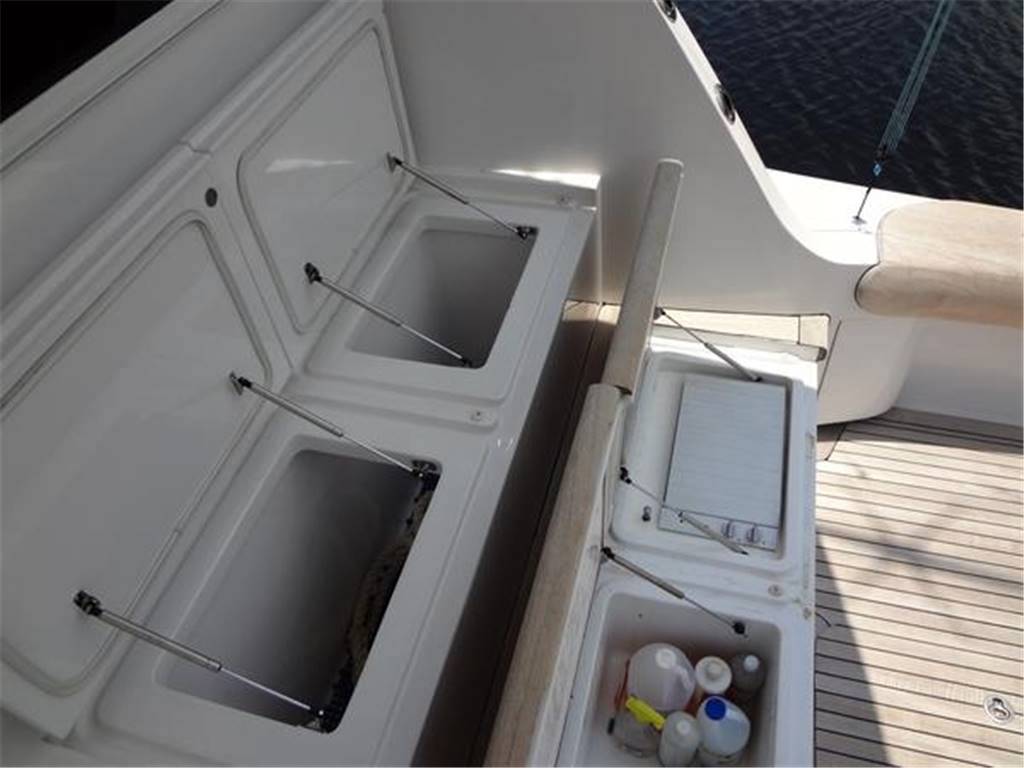

? Fiberglass cockpit boarding step box w/storage
? Custom entertainment system

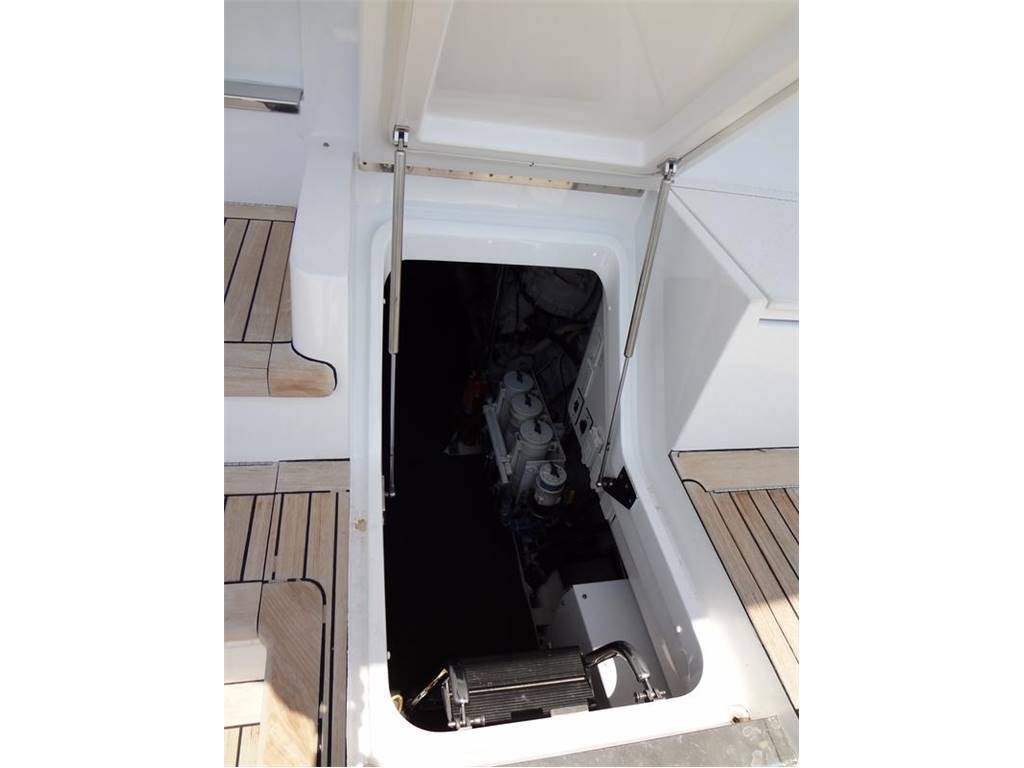

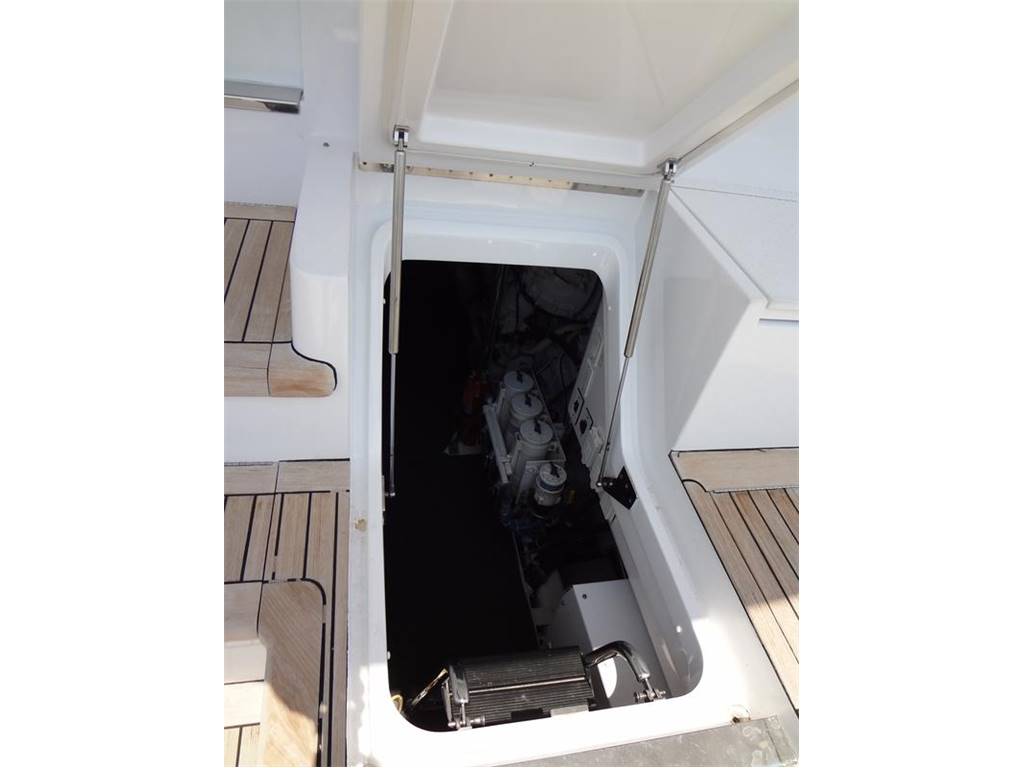

? Hinged seat w/engine room access
? 2 x Tackle drawers w/perforated SS bottom
? 10 cu. ft. Bait freezer
? 3 x 20 gal. storage tubs

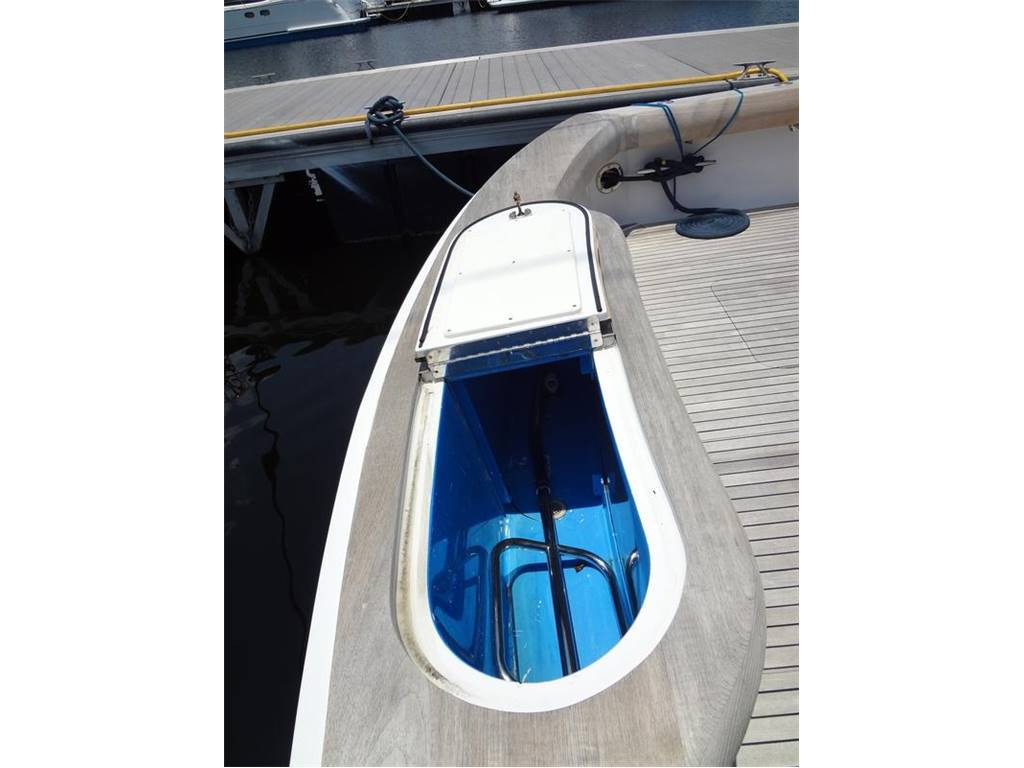

? Transom Fishbox w/recirculating livewell
? Eskimo chipped ice machine
? Verticle tackle center
? Fresh water washdown w/foredeck outlet

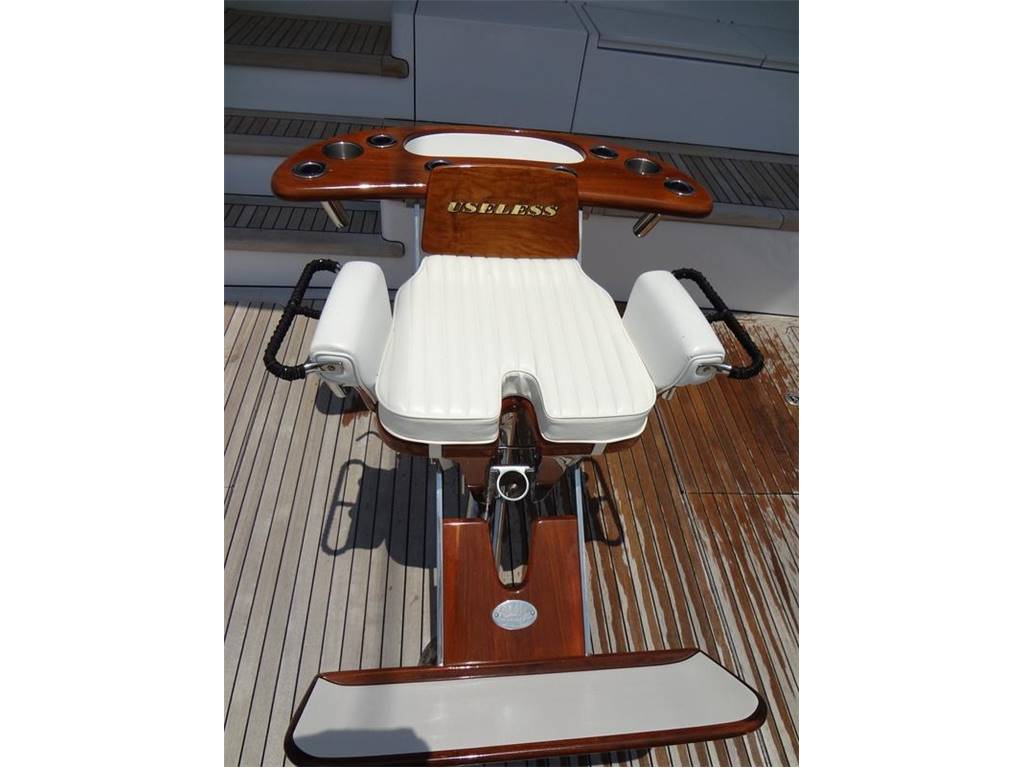

? Custom Large Bluewater fighting chair w/offset pedestal
? 2 x 65" fish boxes w/macerator, flush in deck w/gas hinges
? Storage in steps to deckhouse, step labeled "Refrigerated" is chill box
? Aluminum mounting plate laminated in deck for fighting chair
? 4 x Polished SS rod holders, flush mount
? 4 x Underwater lights
? 10 cu. ft. Freezer
? Teak coaming boards, covering boards & cockpit sole
? Teak mezzanine deck
? 6 x Pompanette wing board rod holders
? 3 x 15 degree rod holders installed in p & s coverboards
Fly Bridge

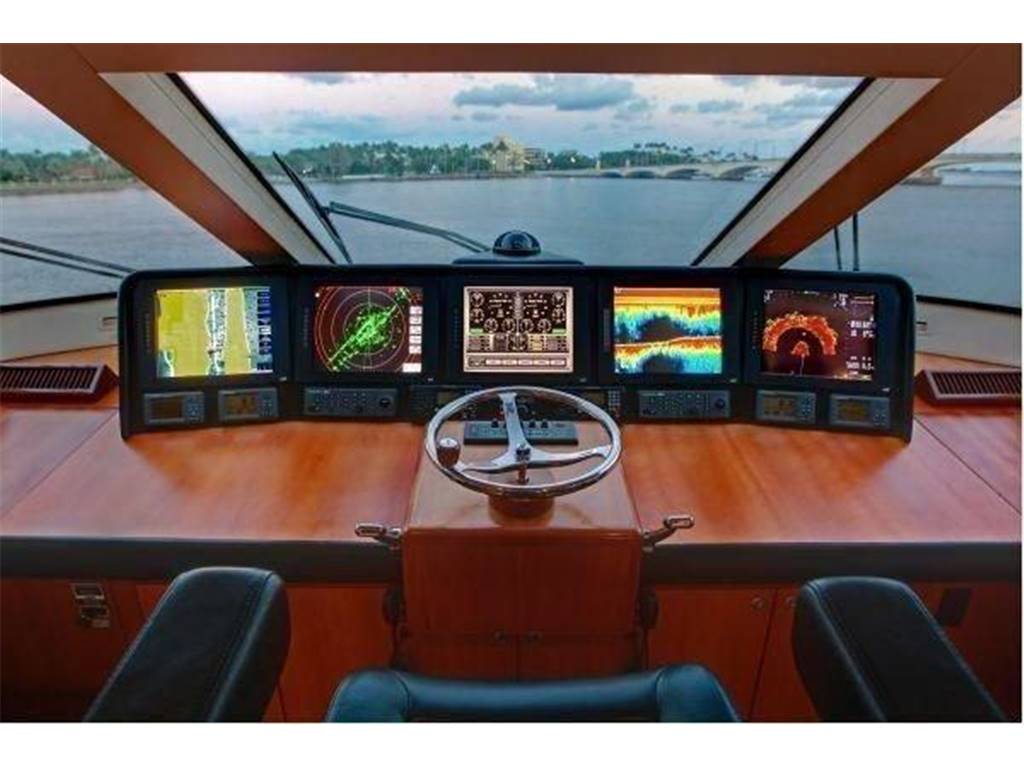

Fully enclosed, luxurious décor with a state of the art helm.
? Computer controlled monitoring system w/touch screen display
? Custom bow thruster controls integrated into engine controls (2 stations)
? Custom High Seas Nav package
? Pod-style forward control station w/single-lever and throttle controls w/engine synchronizer,
emergency back-up, hydraulic power steering and tachs
? Wing controls (P)
? Outrigger cameras, thermal camera, night vision camera
? Polished aluminum ladder, cockpit to fly bridge
? Polished aluminum rails
? L-settee w/rod storage
? Custom double pedestal table, w/ blue pearl,bullnose edged top
? Riding seats (p & s)
? Pompanette helm chair
? Swing door to exterior aft station
? 32" Plasma drop down TV, DVD/CD, AM/FM
? Dry bar w/stone countertop, refrigerator/icemaker & storage
? Smoke & CO detectors

Tower

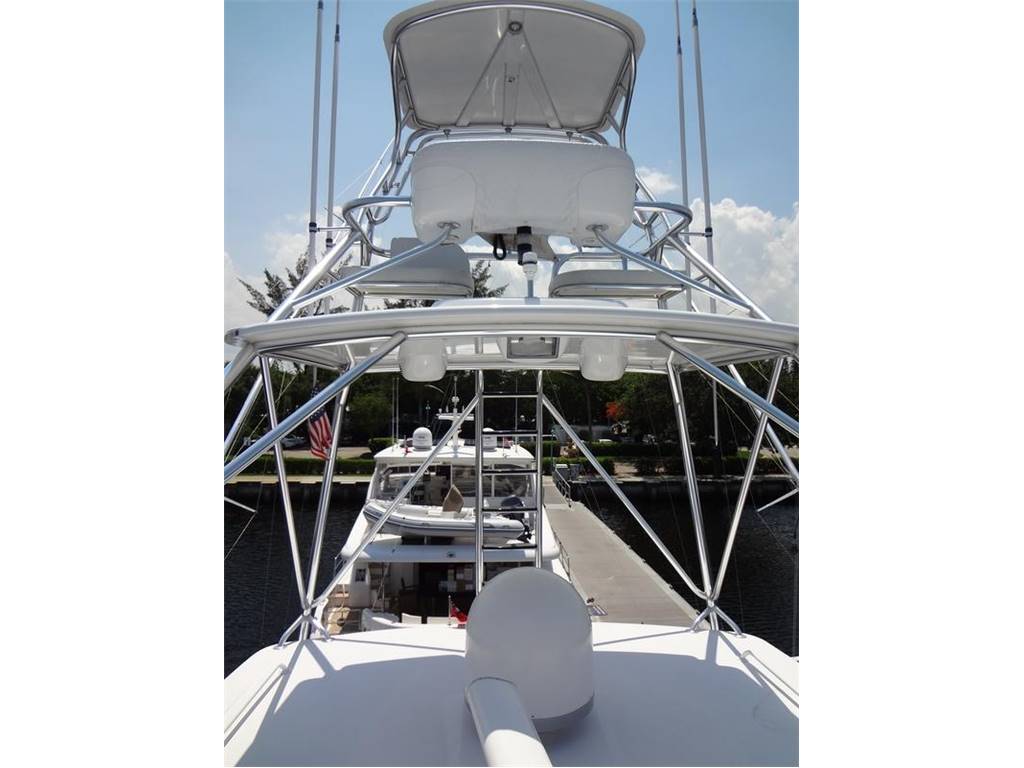

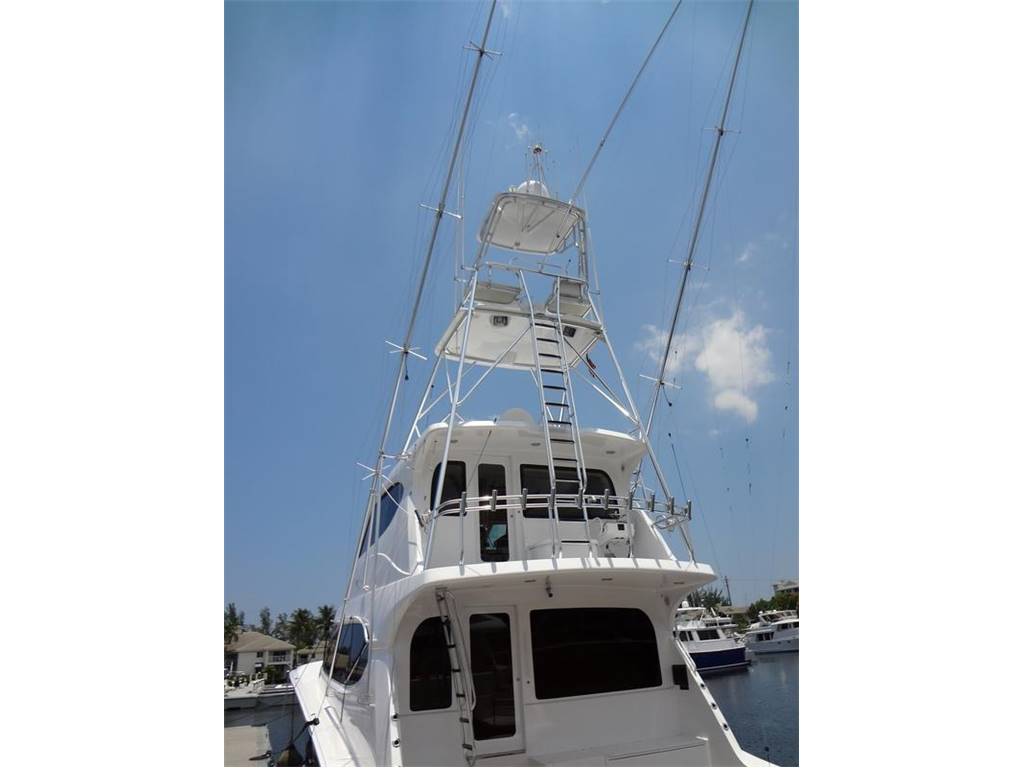

? Full Pipewelders tuna tower
? 96" Sunshade w/molded dome mount
? One piece molded standing platform
? Washdown water w/bladder tank for increased pressure
? 2 x Hydraulic outriggers w/bridge release
? 15' Center rigger
? Red, white & blue LED lights
? Custom bench seat
? 15' Center rigger
? Hydro-lock outrigger locking system
? Custom ladder steps

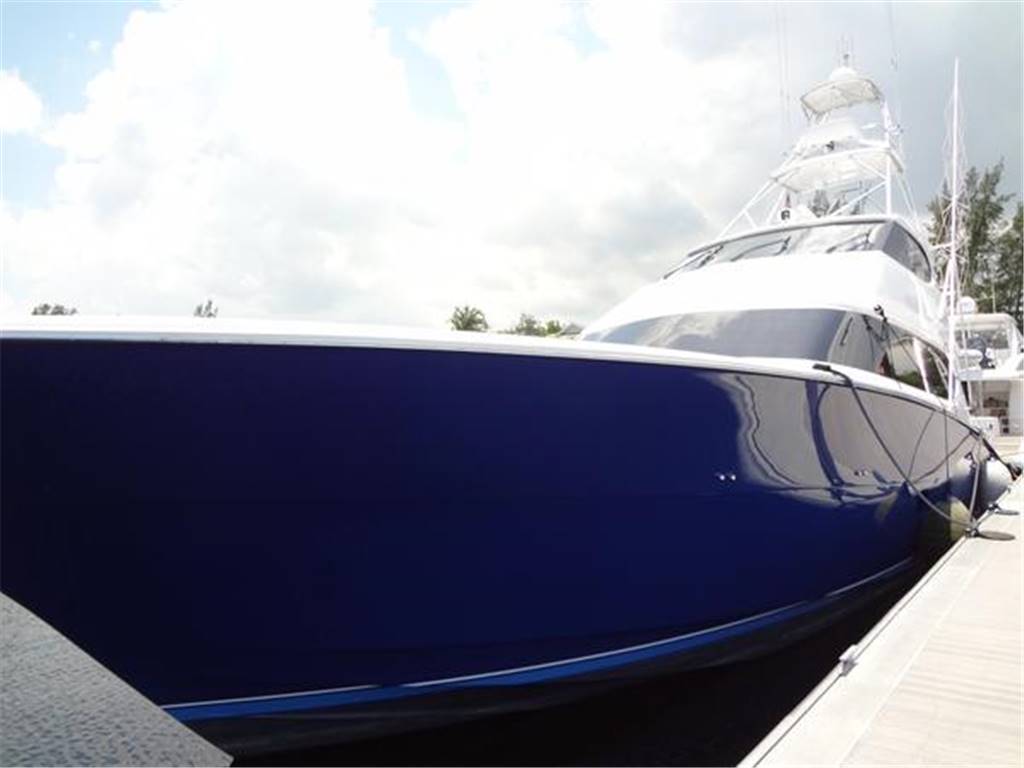

Hull & Fore Deck
? Hi gloss teak transom
? Marlin blue boot stripe w/white accent
? Polymar/copper-based anti-fouling bottom paint
? Non skid decks
? Duel trumpet air horn
? SS Trim tabs
? Manganese bronze struts
? Alloy 22 high-strength 4" prop shafts & SS rudders
? 8 Blade Nibral hi-performance props
? Fiberglass pulpit w/welded, polished SS anchor chute & roller
? Fresh water washdown
? 2500 lb. Anchor windlass w/deck mounted controls
? 90 lb. Danforth anchor w/25' galvanized chain and 300' rope
