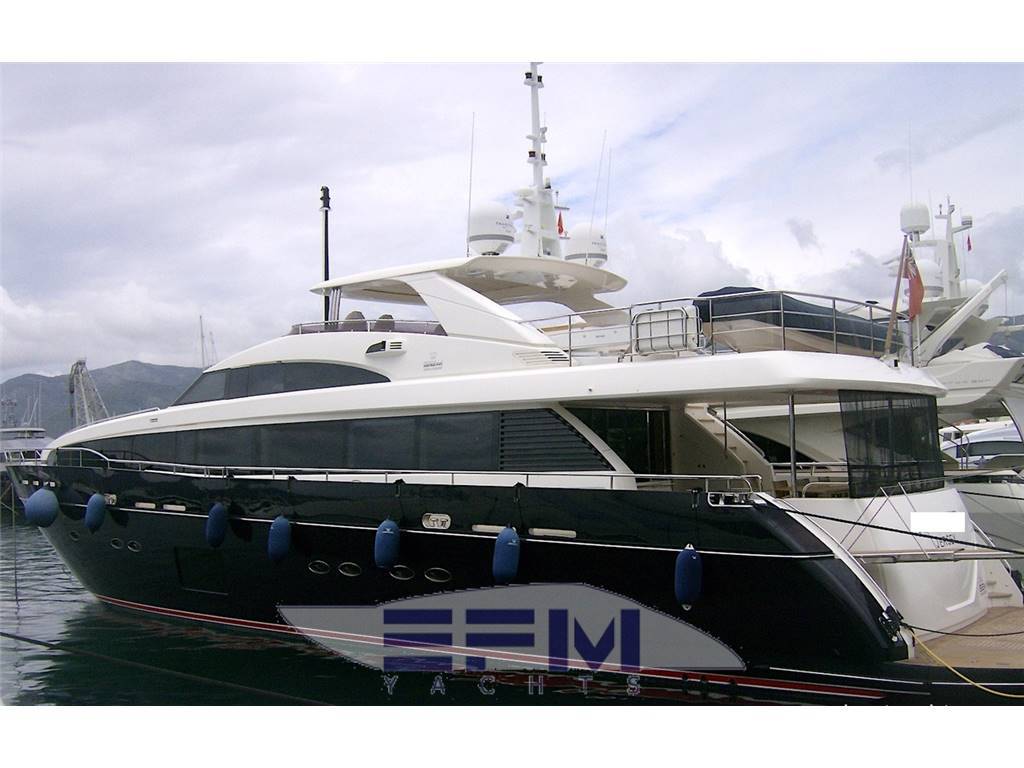

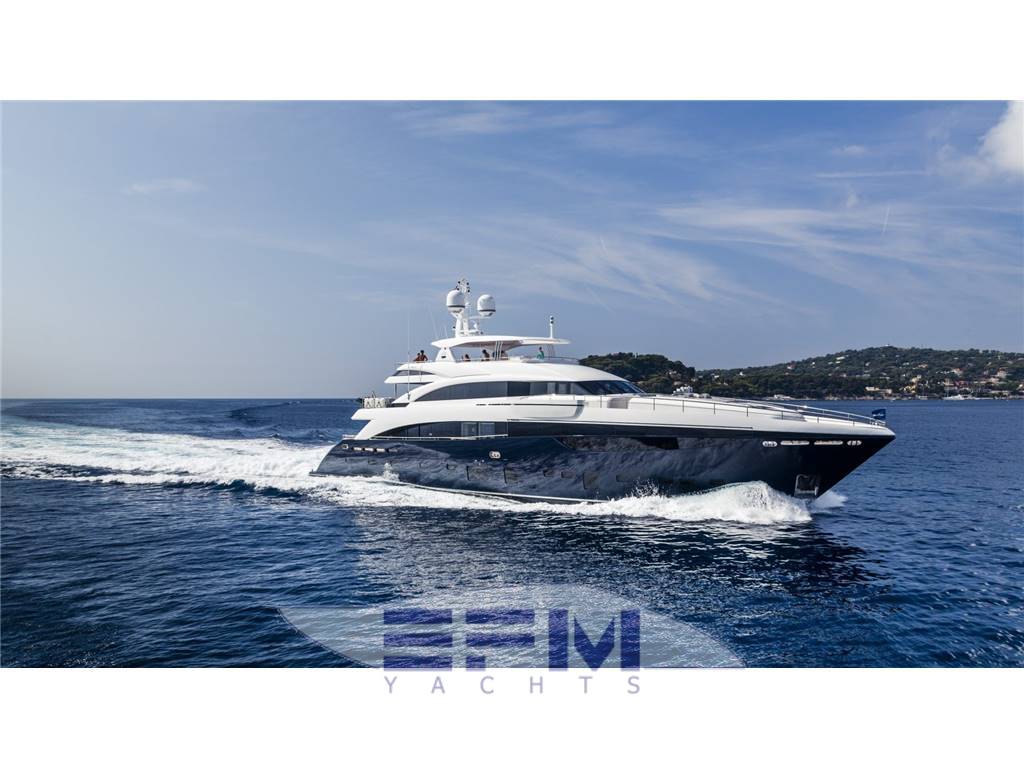

Princess 32 m (2014)

Notas de la instrumentación

Power and drive systems
• Soundproofed engine room.
• Passage is carried out from the bathing area through the transom garage, and also through the door from the side deck
• The engine frames are made as an integral part of the housing in order to give them strength and absorption of vibrations during operation
• Glued construction of bulkheads in the engine room
• Free landing of engines on the frame
• High-performance air intakes
• Fluorescent lighting of the engine room, mains voltage 220/240 V and 24 V
• Powerful fans with electronic delay timer
• Underwater exhaust system with silencer
• Sound and light signaling of the failure of the water cooling system of the exhaust gases at both control stations
• Automatic fire extinguishing system with manual mode switch and warning system in both control stations, combined with engine ventilation blocking system.
• Automatic bilge electric pumps
• Autonomous fire / bilge pump with diesel drive in case of accident
• Electronic control systems for the engine and gearbox
• Hydraulic bow and stern thrusters (550 kgf and 300 kgf, respectively)
• Power Steering System and 2 Hydroelectric Pumps
• Rowing rolls Marinemet 25
• 5-blade propellers made of nickel, aluminum and bronze alloy
• Speed Balancing Steers
• Cathodic protection of a stern tube
• Electrical insulation of the stern tube, engines, fuel tanks, necks and so on.
• Electrotrimers operated with 2 posts with indicators
• Engine-powered hydraulic pump power take-off for bow and stern thrusters and anchor winches

Electrical equipment
• 24 V: 2 x powerful batteries (225 Ah each) for starting the engine
• 6 powerful reserve batteries (200 Ah each)
• Backup battery for generators
• Charging of both battery modules is carried out from the alternators installed on the engine by means of electronic charging diodes
• 2 devices (100 A / 24 V) for charging at idle, connected to the reserve battery pack.
• 2 devices (6 A) for charging at idle speed with the starting engine battery with automatic switch-on
• Remote battery disconnection from the main switchboard
• Transformers 24/12 V for navigation and radio equipment
• Galvanic isolation system
• 2 diesel generators (40 kW, 50 Hz each) with separate sound insulation of the housing, water cooling system and soundproofed exhaust systems. Provided for
• remote control them from the main control panel.
• 2 inputs for shore supply (100 A) with a Glendinning cable system (29 m cable per input)
• The device for switching from generator to shore supply, controlled from the main control panel
• Polarity check system
• Earth leakage protection
• All circuits are protected by automatic interrupters
• Power points in all cabins and living quarters
• Shaver points in all washrooms
• 4 submerged air heaters (2 kW each) for fresh water

Fuel system
• Fuel tanks with a system of connecting pipelines with a total capacity of 12 700 liters of fuel
• Fuel fillings on the right and left side

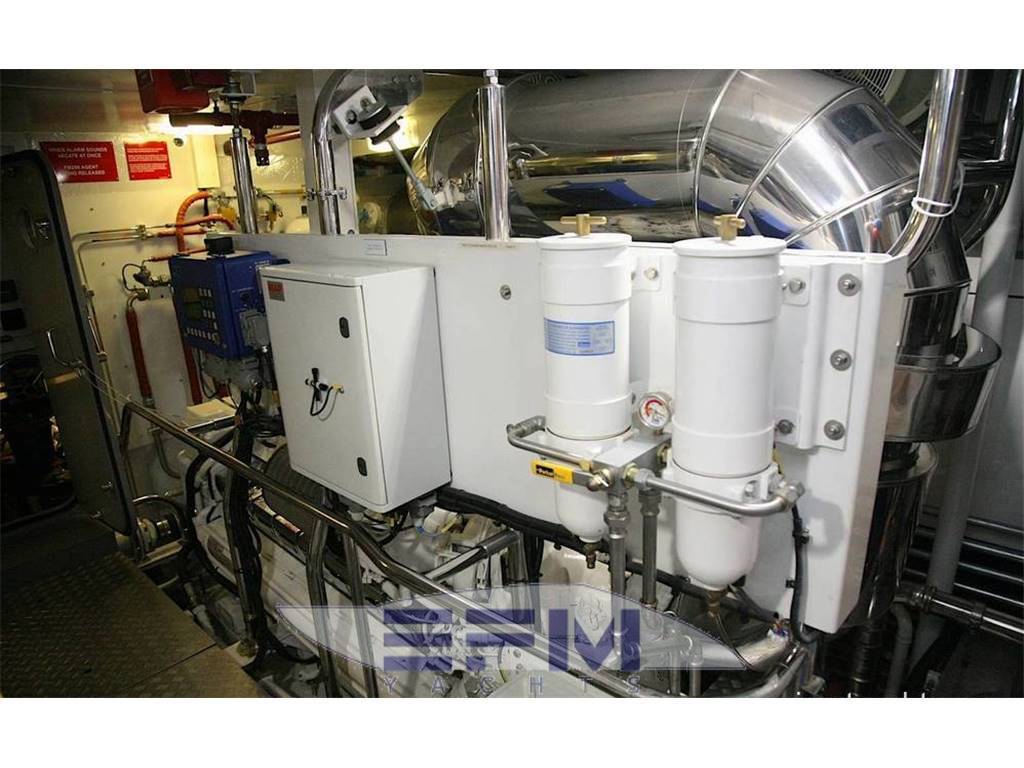

• High-performance duplex fuel filters / water separators with integrated hydraulic valves and moisture sensors connected to the alarm,
• output to both control posts.
• Remote switches for blocking the fuel supply to the engines and generators located in the instrument compartment of the cockpit
• Indicators of fuel level in the wheelhouse and on the upper post
• Fuel supply system, including its preparation / conditioning
Water system
• Water tanks made of high-strength polypropylene, capacity 1600 liters plus 2 hot water heaters.
• Material - stainless steel, the volume of each - 102 liters. The water level indicator The deck located on the deck
• Stern connector for connection to the port water supply
• 2 pressure water pumps 220/240 V with a capacity of 80 l / min each
• The pumps are controlled from the main control panel
• The desalter is 220/240 V with a capacity of 220 l / h
• The toilet is equipped with a vacuum fresh water drain system that is connected to a 500 liter storage tank equipped with an electric sump pump to discharge waste overboard during raid or waste disposal in the port. There is also a backup system
• for waste disposal overboard.
• The level indicator of the contents of the storage tank

Bilge pumps
• 7 automatic bilge electric pumps (with the possibility of switching to mechanical operation with automatic interlocking), 2 pumps in the engine room, 3 pumps in the front cabin and 2 pumps in the crew area 1 high-performance bilge pump (220 240 V, 28 m3 / h ), connected to the collector passing through all rooms on the yacht
• Stand-alone backup bilge / fire pump with diesel drive and reinforced drainage points in the engine room
• Autonomous water level indicator in the hold with a light indication on the steering wheel and a sound signal on the timer (duplicated on the flybridge)

Air Conditioning / Heating System
• The air conditioning system, which works by circulating the water in the circuit, with three noiseless compressors and high-speed water heaters.
• The system provides the supply of outdoor air conditioning
• Separate digital controls in all cabins and upper deck rooms. In the wheelhouse, the anti-fogging system is installed.
• Additional air conditioning outlets in all bathrooms / toilets

Fire extinguishing system
• The engine room is equipped with a special automatic fire extinguishing system (with the possibility
• canceling the automatic mode)
• and signaling, output to both control stations. When
• alarms are automatically turned off
• engines, generators and fans
• Automatic air-lock system in
• engine room
• Built-in smoke collection in all residential areas
• Indication on the main instrument panel of premises, displayed on the main control panel

Fire-fighting system (cont.) Finishing
• 1 fire electric pump 220/240 V with a capacity of 28 m3 / h
• Stand-alone backup bilge / fire pump with diesel drive and reinforced drainage points in the engine room
• 2 fire hoses with connection points in front of the deck and at the stern
• Manual extinguishers in all cabins, in the galley, lower control post and crew cabins
• Separate automatic fire extinguishing system in the compartment with electrical equipment

Notas de armamento

Standard equipment
• Hydromechanical steering system
• Controlled with 2 posts hydraulic bow thruster
• Controlled from 2 posts hydraulic aft thruster
• Operated from 2 posts 2 anchor winches and 2 anchors
• Managed from 2 radar posts with color indication and chart plotter / GPS with connection to autopilot
• Navigation system Navtex
• Electro-hydraulic trimmers with indicators
• Controlled with 2 posts log recording speed and distance traveled
• The echo sounder, operated from 2 posts, equipped with an acoustic alarm
• Remote controllable with 2 posts searchlight
• VHF DSC R / T communication unit with 2 PU

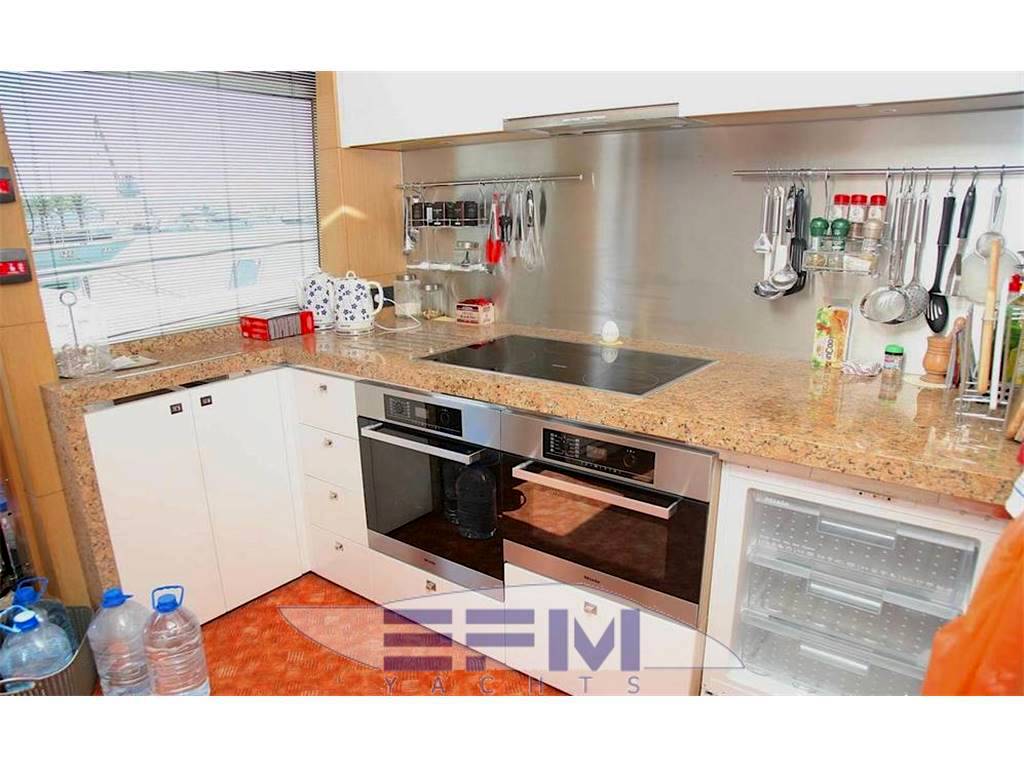

• 2 combined ovens (microwave / standard)
• Telescopic passenger ladder with remote control system
• Two transom doors for passage to the bathing area
• Side landing doors (left and right side)
• Transom shower with cold and hot water
• Crane on flybridge
• Hydraulic winches for aft mooring
• Two diesel generators 2 x 40 kW
• 2 shore power inputs
• 2 x 100 A battery charger at idling speed
• Air conditioning system
• The salon has an LCD TV with DVD / radio and surround sound system

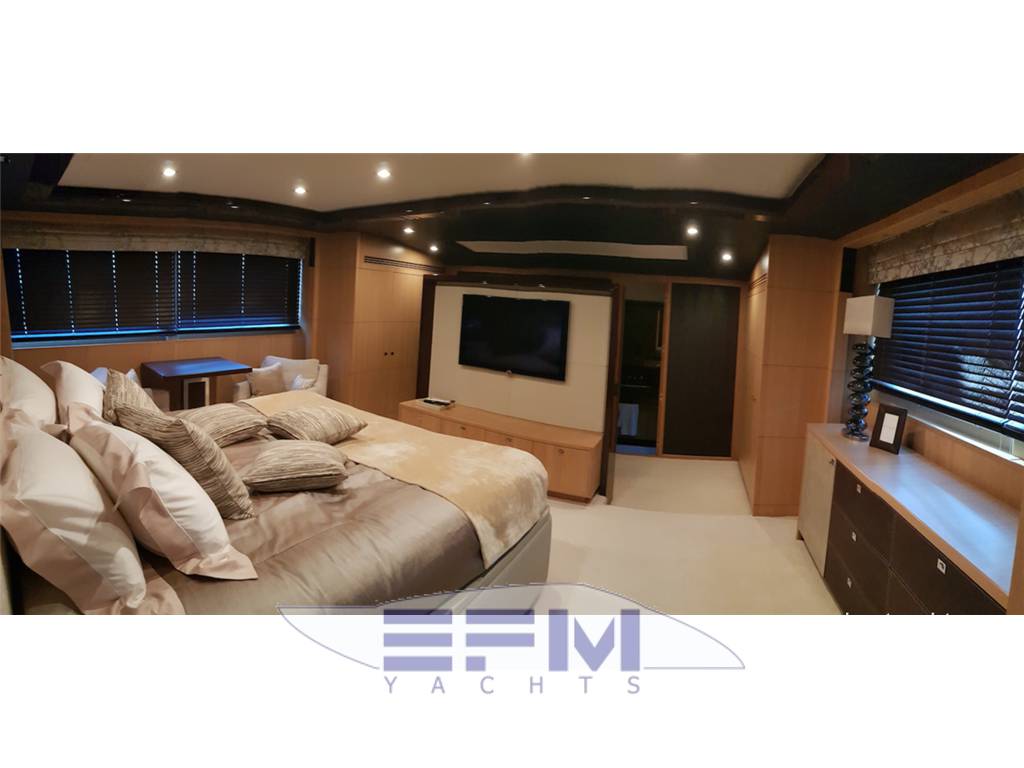

• All cabins are equipped with LCD TV with DVD / radio
• Large refrigerator in the galley
• Two freezers and a separate installation for the production of ice in the galley
• A large refrigerator and a separate wine cooler in the dining room
• Dishwasher
• Two washing machines
• Teak side decks, cockpit and flybridge decks
• Stern mooring lights
• An additional (third) mooring control post in the cockpit

Deck equipment
• 2 x 160 kg of anchors, for each 200 m of the anchor chain
• Deck anchor chain anchors (stainless steel)

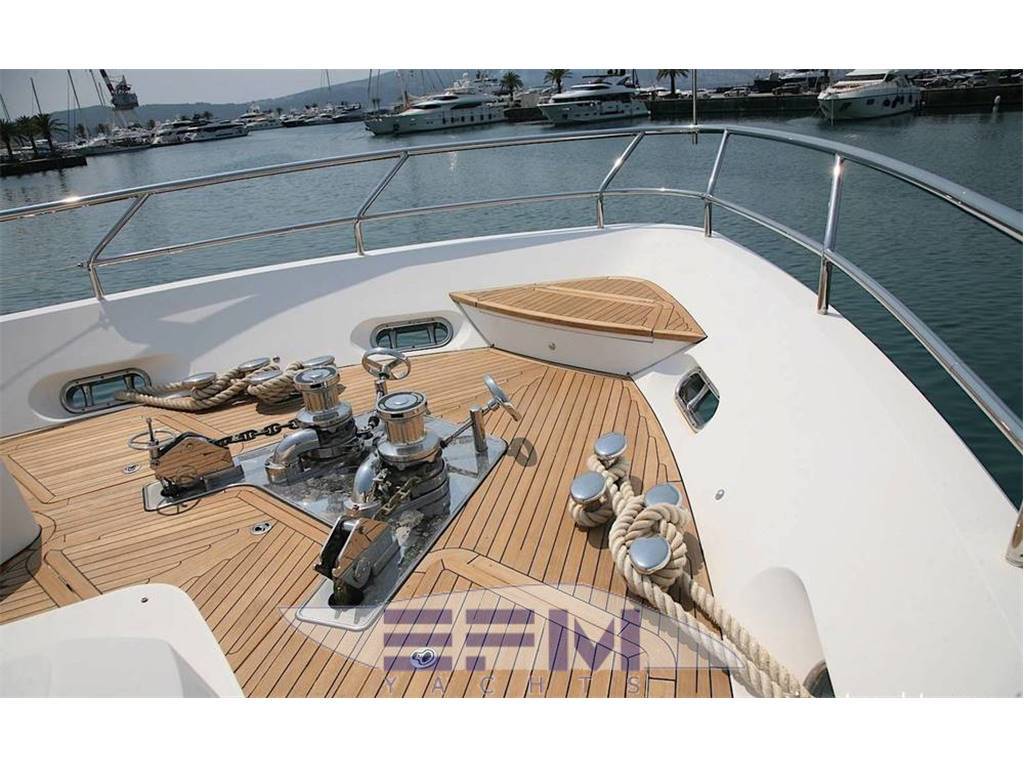

• 2 hydraulic anchor winches, controlled from 3 posts - tank, main deckhouse and flybridge.
• The system of washing the anchor under the pressure through the anchor hinges
• 2 sets of springs
• 2 mooring ducks at the stern and 2 ducks
• 2 hydraulic winch at the stern for winding mooring mooring.
• 2 mooring ducks on the swimming platform
• All hocks and knives are made of stainless steel

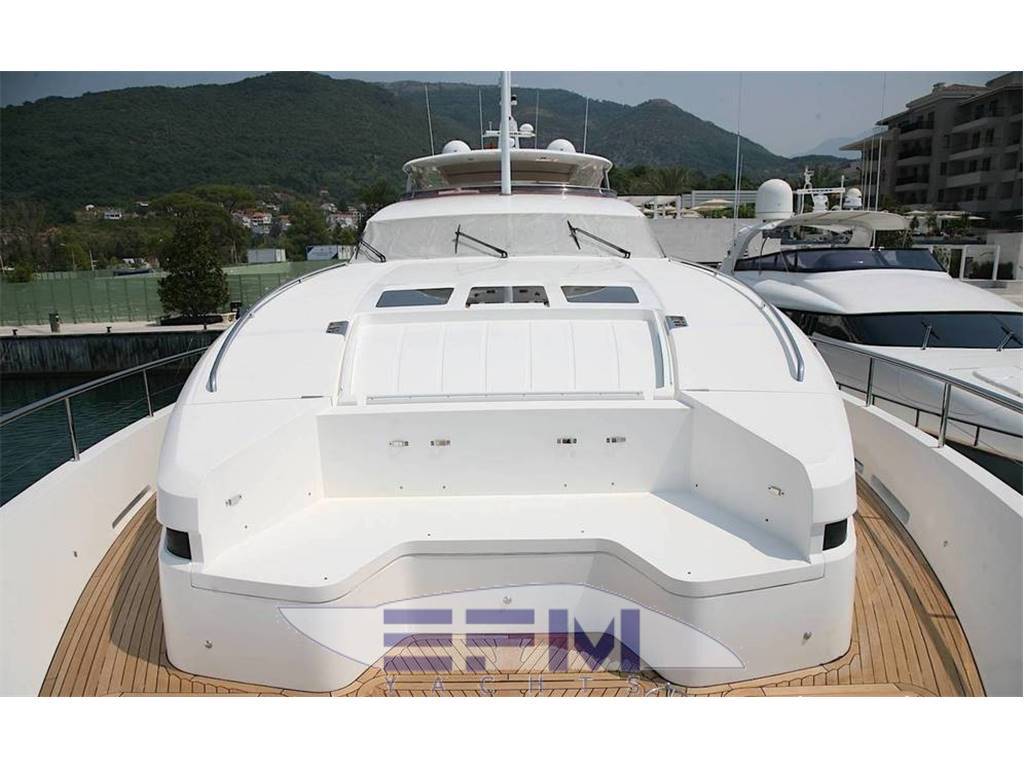

• Sun deck in the bow of the deck with cushions and a storage locker
• Hood for storing fenders and mooring in the bow of the deck
• In the front part of the upper deck there is a zone with seats, covered with upholstery, and with a teak table
• Side pillars of pulpit and fences on bulwarks made of stainless steel
• Handrails in the bow and on the stern canopy of the roof
• The entire set of navigation lights IMCO
• Managed with 2 posts dual beam searchlight
• Stern mooring lights (2)
• 2 inputs for connecting shore supply (220/240 V, 1 phase, 380 V 3-phase), each input is equipped with self-sealing cables of 29 m in length
• Points for connecting water, TV and phone
• Megaphone / fog horn
• Fuel-filling necks on the left and starboard side and the water filler neck in the aft part of the port side
• Telescopic passenger ladder with remote control, lighting and folding handrails
• Crane on flybridge (1000 kg), with hydroelectric drive, hinge, accessories for
• lifting / lowering the load onto the transom platform and
• flybridge and superstructure to increase the coverage of 2 speakers (as required by the US Oceans Council)
• The door from the transom platform to the garage

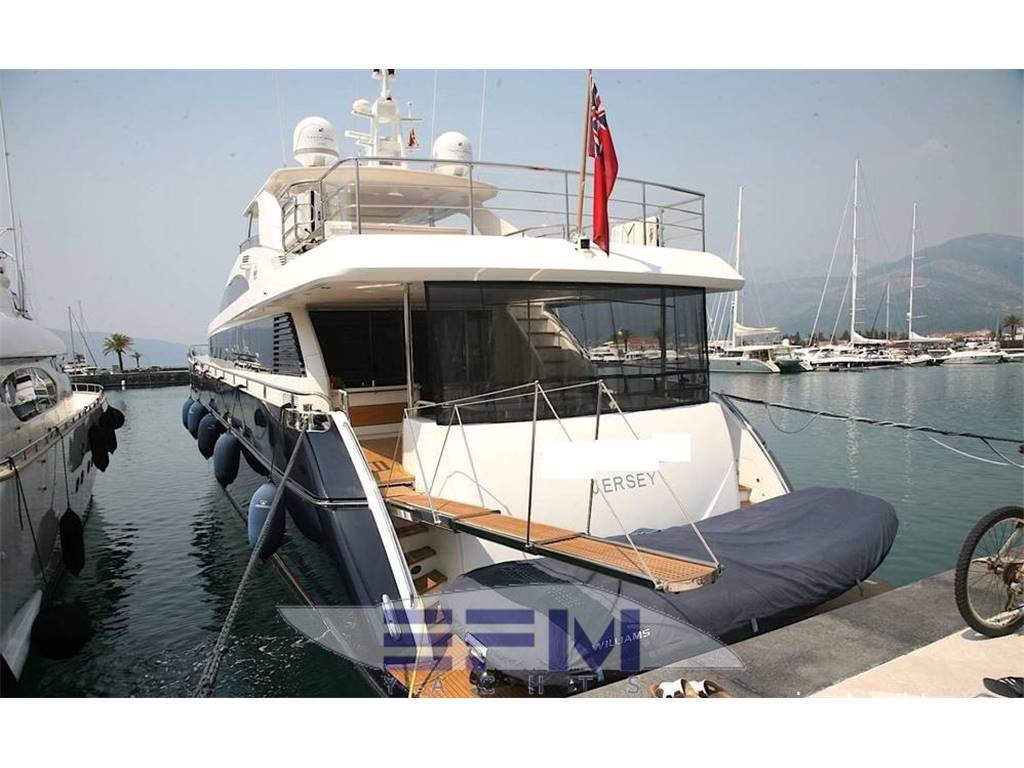

• Transom platform with electro-hydraulic lifting / lowering mechanism
• Bathing ladder
• Transom shower with hot and cold water
• Toilet with vacuum system
• Swing doors to both side decks

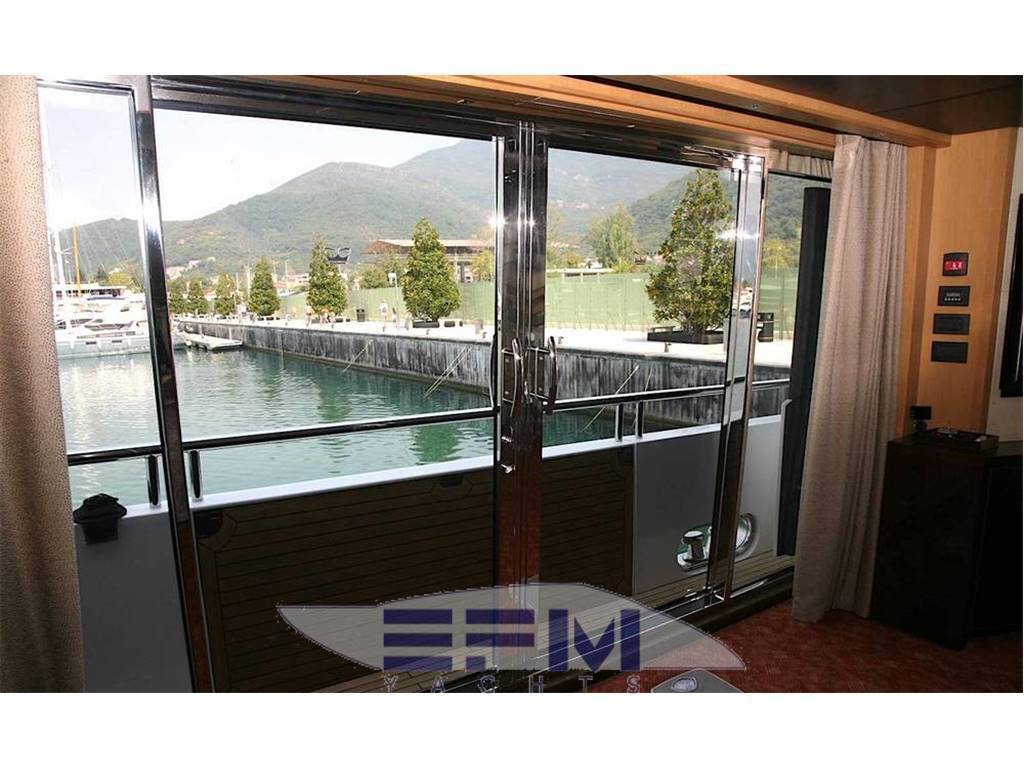

• Sliding doors from salon to the right side deck
• 4 bollard with mooring beaks Pump for pumping bilge drains in the stern

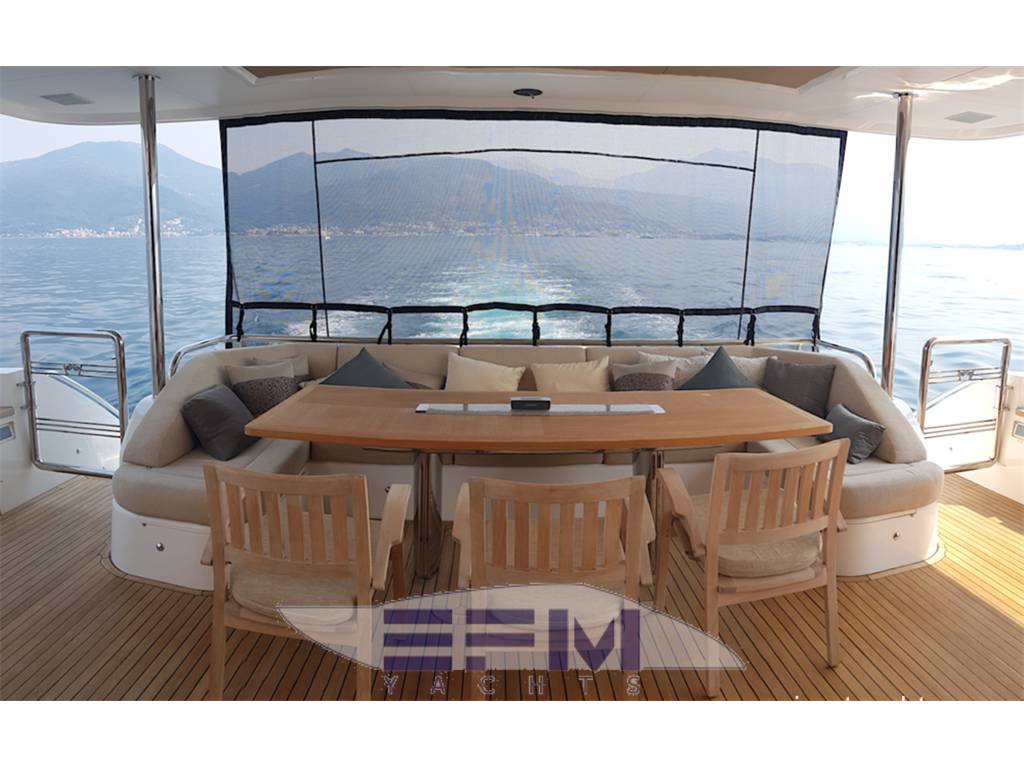

Aft cockpit
• Self-draining cockpit with teak flooring.
• Seats in the back are covered with upholstery
• Teak table and 3 chairs
• Deck lighting
• Handrails made of stainless steel. become
• Removed from the interior of the speaker system CD / Hi-Fi
• Under the stationary seats there is a locker for storing tools and mooring lines
• 2 doors for access to the swimming pool
• On the bulwark there are doors for entry to the right and left decks
• The door to enter the service rooms and engine room (from the side of the right side deck)
• Built-in ladder on flybridge, laid out with a tick
• Mooring control post (engine, bow and stern thrusters and anchor winches)
• The post of remote control of fuel valves of the engine and generator, and also the device of blocking of ventilation of the engine
• Option: bar with electric grill, sink, large icebox with top loading and locker
• Lockable fuel cell canister for onboard motor boat

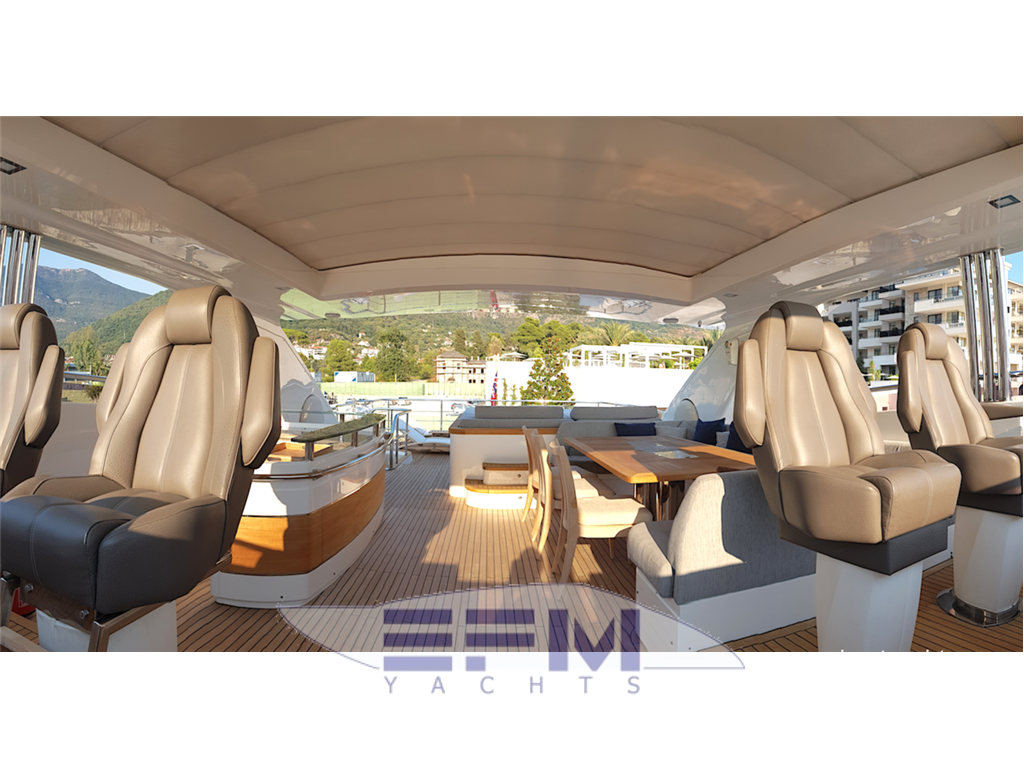

Flybridge

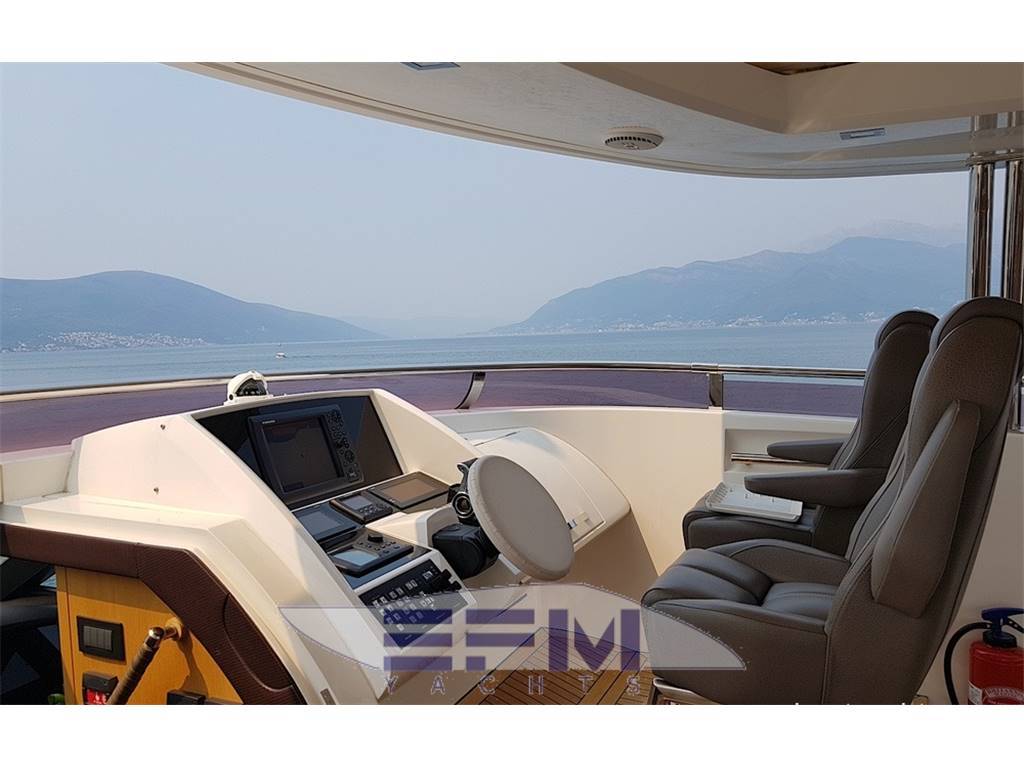

• Control station with dashboard and duplicated engine display panel
• Hydraulic power steering system with an adjustable steering wheel position
• Steering wheel position indicator
• Electronic engine controls
• The controls for bow and stern thrusters, anchor winches,
• searchlights, mountain and trim tabs.
• Electronic compass with automatic lag and autopilot
• Echo sounder
• Radar and chart plotter / GPS-display with a full set of controls
• VHF with DSC (VHF DSC R / T) communication unit
• Intercom with a megaphone
• The system of sound and visual signaling of bilge pumps, fire extinguishers of the engine room, as well as for warning about the defective condition of fuel filters,
• increase of temperature of exhausts, fluctuations of pressure of oil in the engine and increase of temperature of water
• Removed from the cabin speaker system CD / Hi-Fi with remote control
• The navigational table
• Steering wheel and navigating seat with adjustment
• Corner Sofa

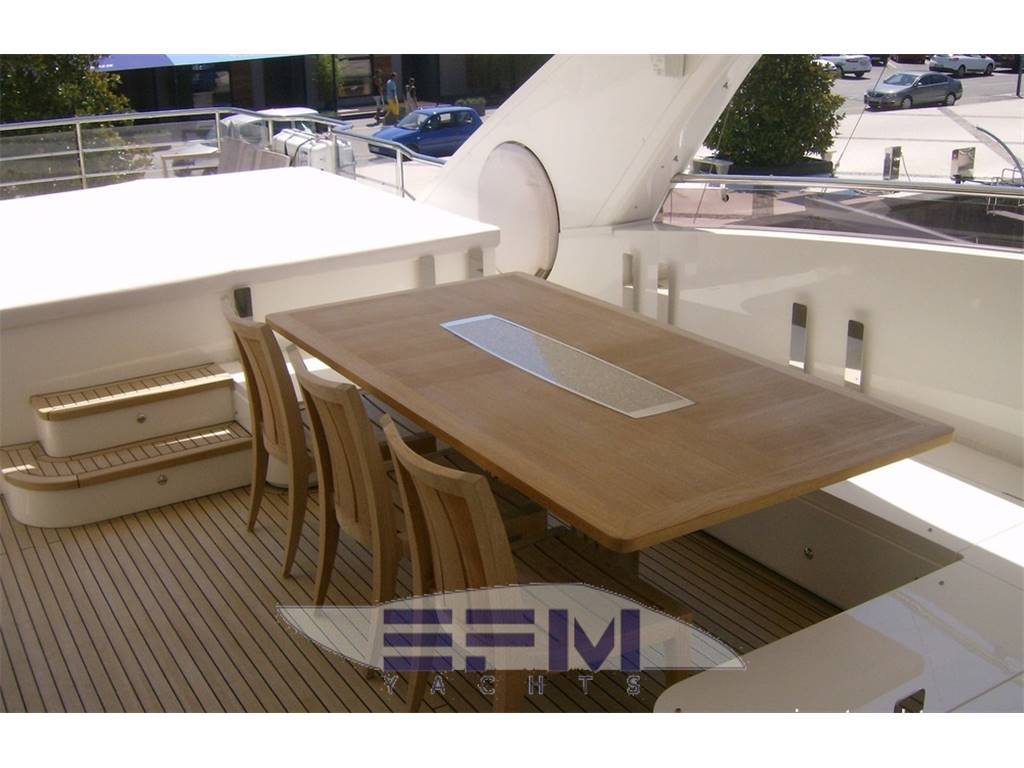

• A large sitting / dining area with a horseshoe-shaped sofa and 3 unfastened chairs

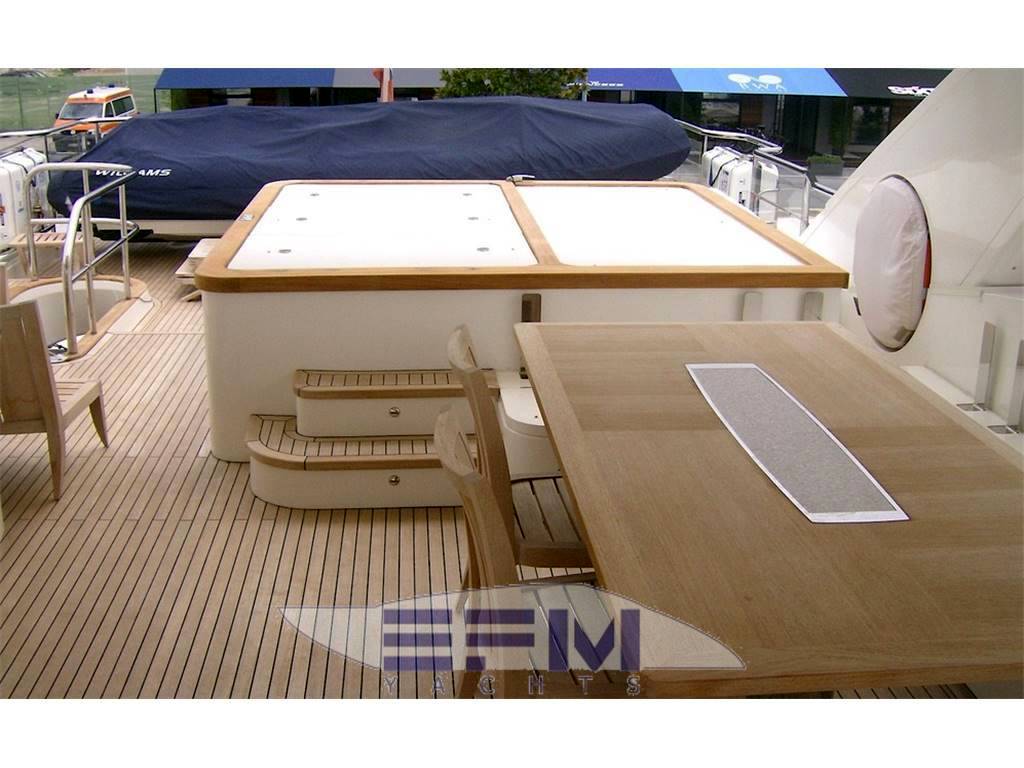

• A sunbathing area on a raised platform with a bottom locker (or, alternatively, a whirlpool bath)
• Covers for all seats and a cover for the steering wheel and dashboard

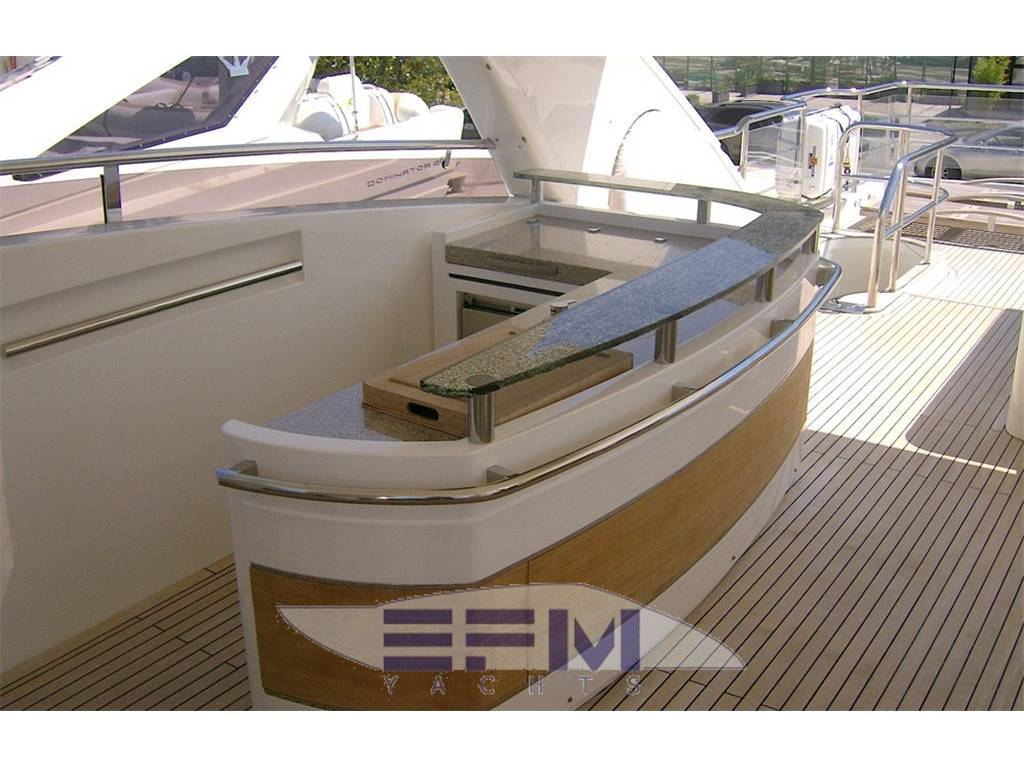

• Bar with electric grill, sink, large icebox with top loading and locker
• Ice Maker
• Teak deck cover
• Stairway to the wheelhouse
• Stairs to the cockpit
• Aft locker
• Deck lighting
• Rigid GRP roof with sunroof

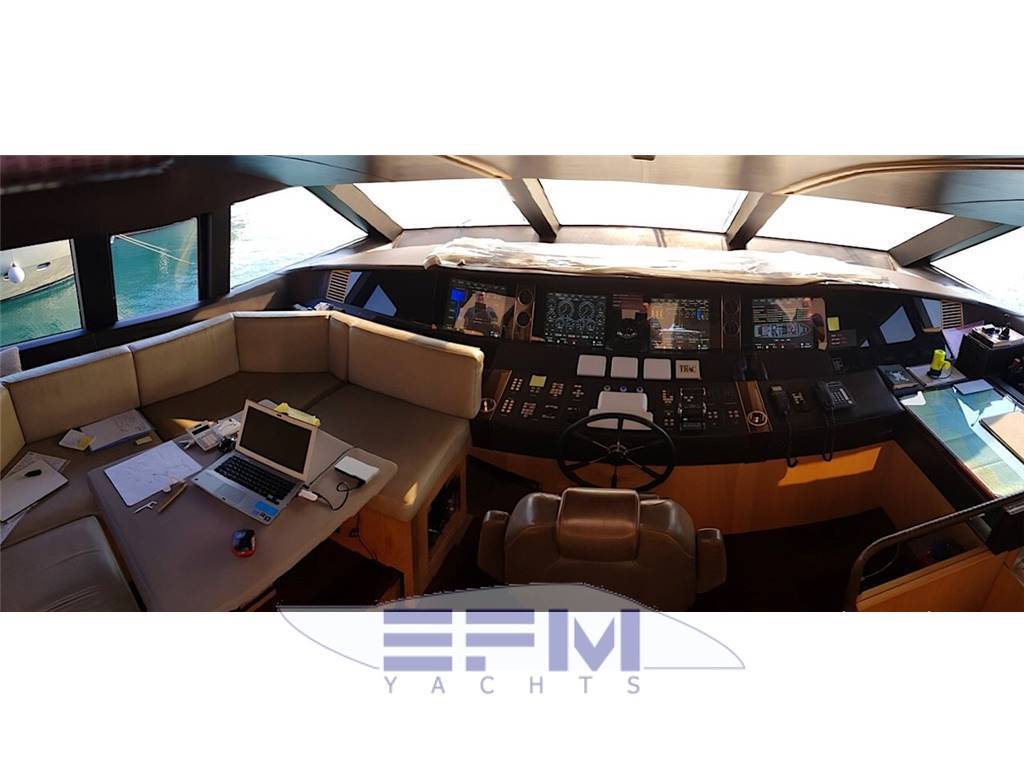

Wheelhouse
• Self-contained and position-adjustable steering seat
• Horseshoe sofa with table
• Stairway to flybridge
• Ladder to the main deck
• Chart table with a card compartment
• Main distribution board (24 V and 220/2 240 V)
• Electronic engine management
• Controls for bow and stern thrusters
• Hydraulic power steering system,
• adjustable steering wheel
• Steering wheel position indicator
• Engine instrument panel with integrated alarm system for waste water temperature and alarm system for fuel filter condition
• Control and alarm system for bilge pumps
• DU fire fighting system in the engine room
• Radar display and a separate map-plotter / GPS-display with all controls
• Compass
• Log, connected to the autopilot, with a map plotter / GPS and radar
• Spare magnetic compass
• Depth sounder with alarm of the set depth
• VHF with DSC (VHF DSC R / T) communication unit
• Internal communication system with flybridge, telephone communication with all cabins and office spaces
• Means of controlling the megaphone and fog horn
• Horn Communication Controls
• The monitor of the CCTV system, which displays an image from 2 cameras in the engine room and from one camera at the stern
• Remote control system of searchlight
• Trimmer control with integrated display
• Electric socket 220/240 V
• CD / Radio
• Windshields of increased durability (improved optical shades for clear visibility at night) with an anti-fogging system and anti-glare
• Three windshield wipers operating in variable modes, and a fresh water supply system for windscreen washer
• Top light and night lighting
• Fire extinguisher
• Air conditioning / heating outlets
• The second stand-alone GPS system with a display
• Navtex with display
• The bottom window on the electric drive (right and left)

The wardroom (deck cabin)
• Large panoramic windows with tinted glasses of increased strength on the right and left side
• Sliding side doors leading from the salon to the side deck of starboard
• Folding balcony, mounted in the right bulwark
• On the balcony there are handrails
• Three sliding doors with stainless steel frames leading from the cabin to the cockpit
• Large sofas in the left and front of the cabin with 2 separate mobile chairs in the rear
• Large coffee table
• Media center with audio and video systems; LCD TV with a diagonal of 50 inches, with Hi-FI system, surround sound and a radio / DVD player
• Upper light and concealed lighting with dimmer (24 V)
• Blinds and / or curtains on all doors and windows
• Air conditioning / heating outlets
• Power outlets for 220/240 V
• Telephone socket
• Fire extinguisher
• Clock and barometer

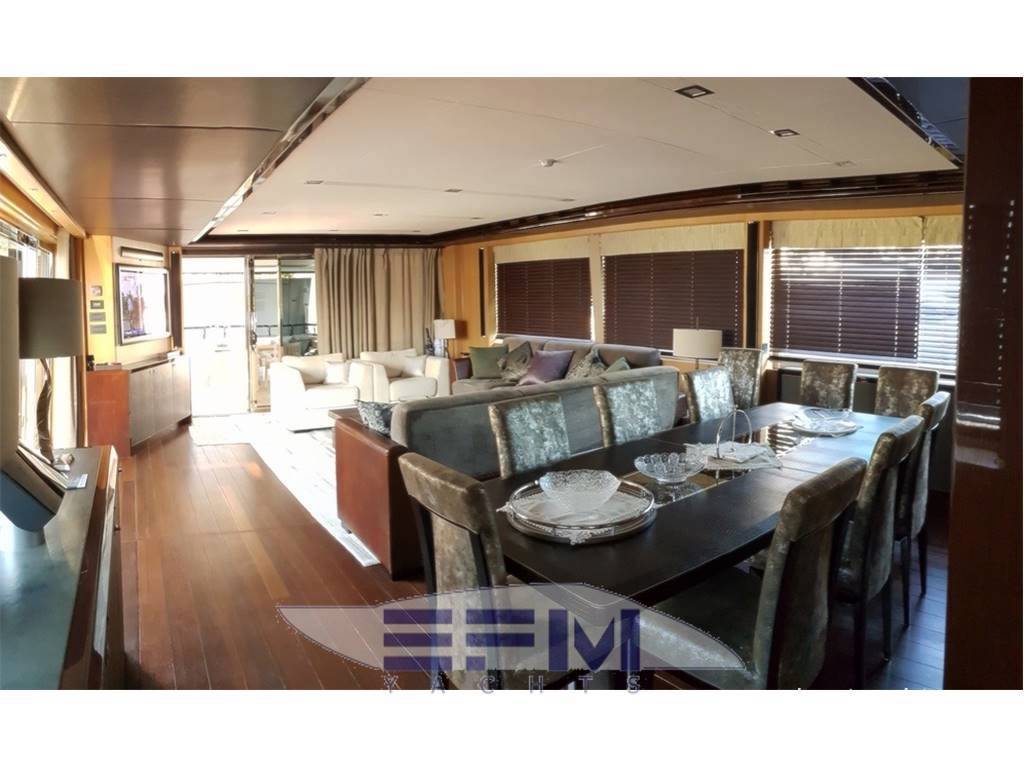

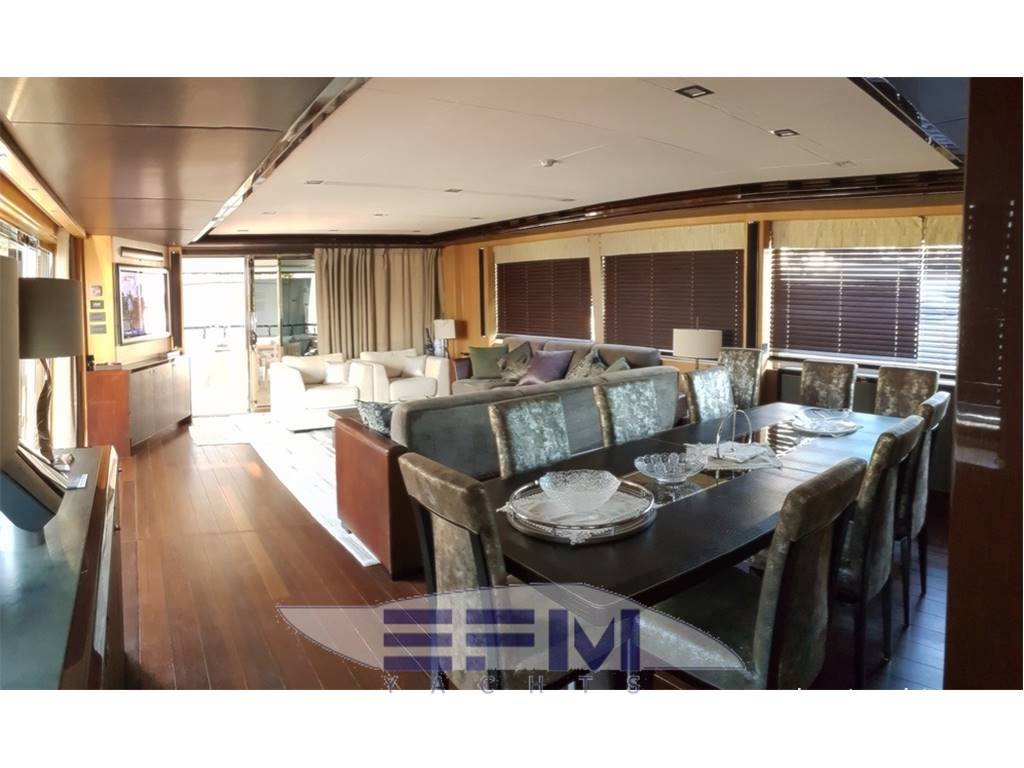

Dining area at the front
• Dining table for 10 people
• Dining Chairs (10)
• Bar in the right part of the deck with a set of wine glasses and a large refrigerator
• Cabinet for storing utensils and cutlery (10 sets)
• Large panoramic windows with tinted glasses of increased durability on the right and left side with blinds / curtains
• Upper light and concealed lighting with dimmer (24 V)
• Electric power outlets 220/240 V
• The central vacuum dust extraction system
• Air conditioning / heating outlets

Upper Corridor
• Refrigerator for wine
• Sliding door to the galley
• Stairway to the cabins on the lower deck
• Stairway to the wheelhouse
• Ceiling lighting
• Passage to the daytime toilet (wash basin, toilet bowl with fresh water and vacuum drainage system)
• Swing door to the right side deck
• Passage to the cabins on the main deck

Galley
• Work surfaces are finished with granite or similar material
• Glass-ceramic plate with 4 burners
• Large refrigerator
• 2 freezers
• Ice maker
• 2 combined ovens (microwave / standard) with grill
• Coffee maker
• 2 stainless steel sinks
• Dishwasher
• Waste compactor
• A set of lockers and cabinets for kitchen utensils
• Electric power outlets 220/240 V
• Fan extractor
• Lifting shutters on windows
• Air conditioning / heating air outlets
• Fire extinguisher
• Door to the upper corridor
• From the starboard side there is a door leading to the dining area and into the serving area
• Swing door to the left deck
