Princess yachts S66 (2019)

Notas de la instrumentación

Audiovisual Equipment and Telecommunications
• Saloon: Samsung TV with power lift system and Apple TV unit.
• Master Stateroom: Samsung TV with Apple TV unit and UPS.
• VIP Cabin: Samsung TV with Apple TV.
• Starboard Cabin: Samsung TV with Apple TV unit and UPS.
• Fusion Stereo system with SONOS via Wifi in Saloon, Cockpit, Sportbridge, Master, VIP and Starboard guest cabins.
• Pepwave 5G router with 2 modems and 4 SIM card slots - connected to UPS.
• CISCO Switch with 4 Wifi repeaters around the boat - connected to UPS.
• Pre-installation and cabling for Starlink satellite internet system.
Navigation Equipment

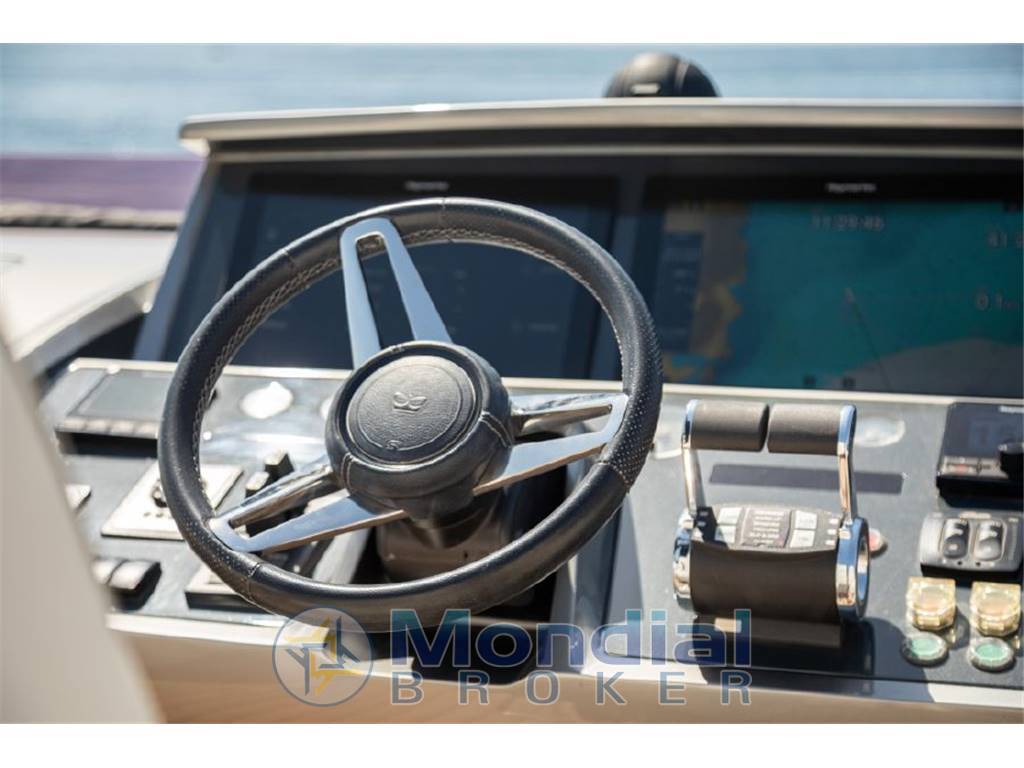

Dual station instruments and controls at Sportbridge and Lower Helm Positions:
• Raymarine AXIOM XL16" multifunction displays including AIS, Radar, and weather station functions (2 x units installed at Lower helm, 2 x units installed at Sportbridge helm).
• Power-assisted electro-hydraulic steering.
• Adjustable steering wheel.
• Rudder position indicator.
• High-speed magnetic compass.
• Electronic engine controls.
• Trim tab controls with indicators.
• Bow and stern thruster control.
• Electric anchor winch remote control.
• Autopilot.
• Radar.
• Raymarine 700 AIS.
• Speed and distance log.
• Echo sounder with alarm.
• VHF with DSC R/T with intercom.
• Remote control searchlight.
• Horn button.

Notas de armamento

• Teak-laid transom platform, cockpit deck, sportbridge stairway, sportbridge, foredeck, steps to side deck, side deck and foredeck.
• Lewmar reversible electric anchor winch with foredeck and helm position controls.
• Stemhead roller with automatic anchor launch and retrieve.
• Self-stowing (40kg/88lb) Delta anchor with 80m of chain.
• Bow rope storage locker.
• Freshwater deck/anchor wash.
• Walk through coachroof seating area.
• Foredeck sunbathing area with cushions and integrated adjustable headrests.
• Deck storage lockers for fenders and foredeck sunbed cushions.
• Stainless steel bow, stern and spring cleats (8).
• Stainless steel pulpit and guardrails.
• Stainless steel coachroof handrails.
• Foredeck hatch.
• PVC rubbing band with stainless steel insert.
• LED deck level lighting.
• Full set of IMCO navigation lights.
• Riding light.
• ACR Searchlight with remote control.
• Illuminated crown logo to transom.
• Twin electric horns.
• Fuel and water fillers.
• Lewmar capstan winches.
• Underwater lighting system for stern and aft sides of vessel.


Cockpit and Bathing Platform
• Opacmare electro-hydraulic telescopic passerelle.
• Garage (suitable for tender up to 3.4m / Williams 345, 500kg max.) with Opacmare electro-hydraulic door and tender launch system with electric winch. A removable shelf system has been fitted in the garage to provide additional storage.
• Opacmare electro-hydraulic raise/lower teak laid bathing platform (500kg max.).
• 3rd helm station located port aft.
• Aft sunpad.
• Electric sun awning system aft.
• U-shaped seating/dining area with folding teak table and two folding chairs.
• LED overhead and deck level lighting.
• Stainless steel handrails.
• Liferaft stowage locker containing 2 liferafts.
• Rope stowage lockers.
• Lockable gas strut assisted hatch to lazarette.
• Lockable gas strut assisted hatch to crew cabin.
• Lockable gas strut assisted hatch to engine room.
• Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers.
• Twin transom doors leading to bathing platform.
• Retractable bathing ladder (manual) in side of hydraulic platform.
• Transom steps to access stern from bathing platform when in lowered position.
• Hot and cold transom shower.
• Fusion Signature 6.5" (2) speakers linked to saloon with local control.
• 220/240v shore support inlet in locker.
• Tonneau cover.
• Self-draining.
Sportbridge
• Bimini with electro hydraulic-operation plus aft shade extension and complete enclosure cover for the winter.
• Dual station instrumentation and controls (see 'Navigation Equipment').
• 2 x Raymarine AXIOM XL16" multifunction displays (see 'Navigation Equipment').
• Adjustable steering wheel.
• Audible and visual alarm for bilge pumps.
• Twin helm seats with fore and aft adjustment for helmsman.
• Dometic top loading coolbox at helm position.
• Wetbar with Sportbride electric barbecue, sink, waste bin and Vitrifrigo IM HYDRO XTP Icemaker.
• Large U-shaped upholstered seating.
• Teak table.
• L-shaped seat.
• Clear view hatch to aft cockpit.
• Wind deflector screens.
• Stainless steel handrails.
• LED deck level lighting.
• GRP radar arch.
• Matched whip aerials for VHF R/T and radio.
• Console and seat covers.

Stabilisation system
• Seakeeper 9 gyroscopic stabiliser.
Electrical systems
24 Volt:
• 4 x heavy duty batteries for engine starting.
• 4 x heavy duty auxiliary batteries.
• Battery link facility with remote control at helm position.
• Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present.
• 80-amp Mastervolt battery charger.
• Mastervolt Sine Wave Inverter 5000W.
• Remote battery master switches with control switch at main switch panel.
• Circuit breakers on all circuits.
• 12v voltage dropper for certain navigation and radio circuits.
220/240 Volt:
• Cummins ONAN 19kW diesel generator in own sound shield with water cooled specially silenced exhaust.
• 63 amp shore support inlet.
• Generator/shore support change-over switch.
• Polarity check system.
• Earth leakage safety trip.
• Circuit breakers on all circuits.
• Power points in: Master stateroom, guest cabins, galley and saloon area.
• Additional exterior power points added to Sportbridge, Cockpit and Lazarette.
• Shaver points in all bathrooms.
Air conditioning
• Dometic air conditioning system with heating reverse cycle (90,000 BTU), suitable for temperatures up to 40°C. Comprised of 9 air conditioning handler units and 7 compressor units.
Fuel system
• Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 4,100 L capacity.
• Fuel fillers on port and starboard side decks.
• High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at lower helm.
• Remote fuel cocks in cockpit locker.
• Fuel gauges at main helm console.
Water system
• HEM watermaker.
• LATT reverse osmosis drinking water system with UV filter.
• Water tanks totalling 873 L plus 73 L hot water calorifier.
• Water heated by engines and 240v immersion heater.
• Automatic water pump with filter.
• Main circuit breaker at switch panel.
• Water level gauge.
• Deck filler.
• Electric freshwater toilet system with 272 L holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system.
Bilge Pumps
• Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all).
• High-capacity manual bilge pump with valve system and suction points in same areas.
• Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at sportbridge helm.
Fire Extinguishers
• FM200 automatic/manual override fire extinguishers in engine room with warning system at helm position.
• Hand-operated fire extinguishers (6) in owner’s stateroom, forward and starboard guest cabins, utility area, galley and helm position.
• Additional extinguisher fitted in crew cabin.
Other Equipment
• Ensign staff.
• Fenders (6).
• Chocks for Jet ski.
• Chocks for Tender.
• Mooring warps (4).
• Boat hook.
• First aid kit.
• Tool kit.
• Owner’s manual and engine manual.
• Set of glassware (8 settings consisting of tumbler and wine glasses).
• Set of Princess china (8 settings consisting of plate, side plate, bowl, cup and saucer).
• Set of cutlery (8 settings of 7 pieces).
• Ship’s document case.
• Anchor winch back up handle.
• Mosquito nets for openable hull windows.
