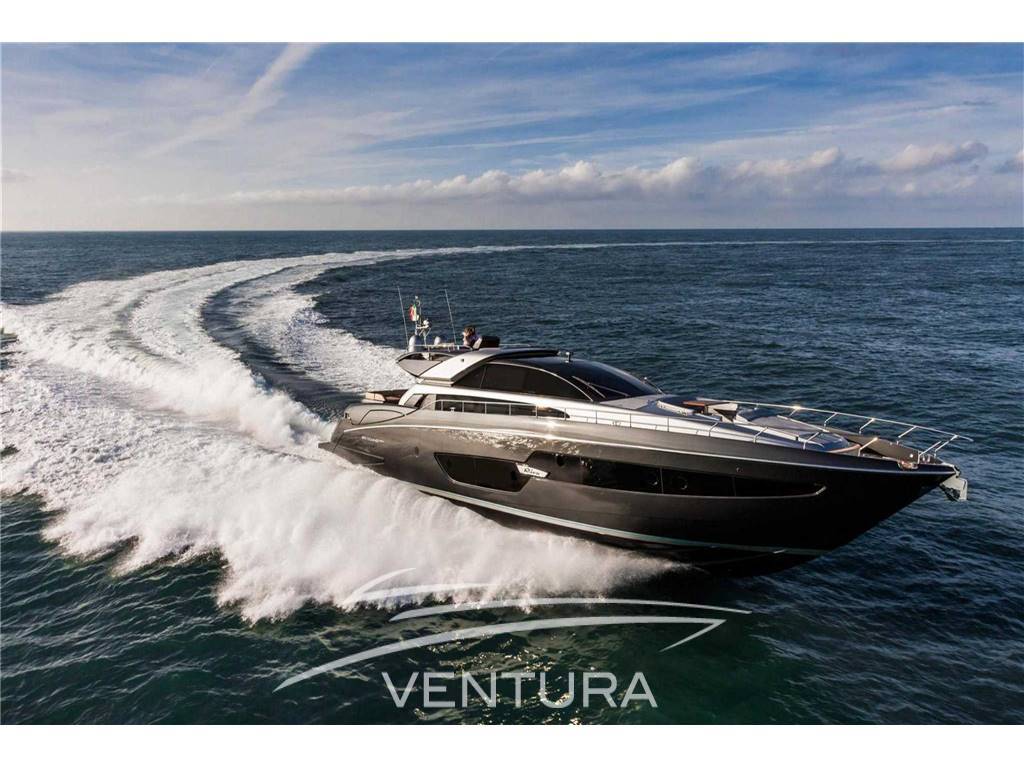

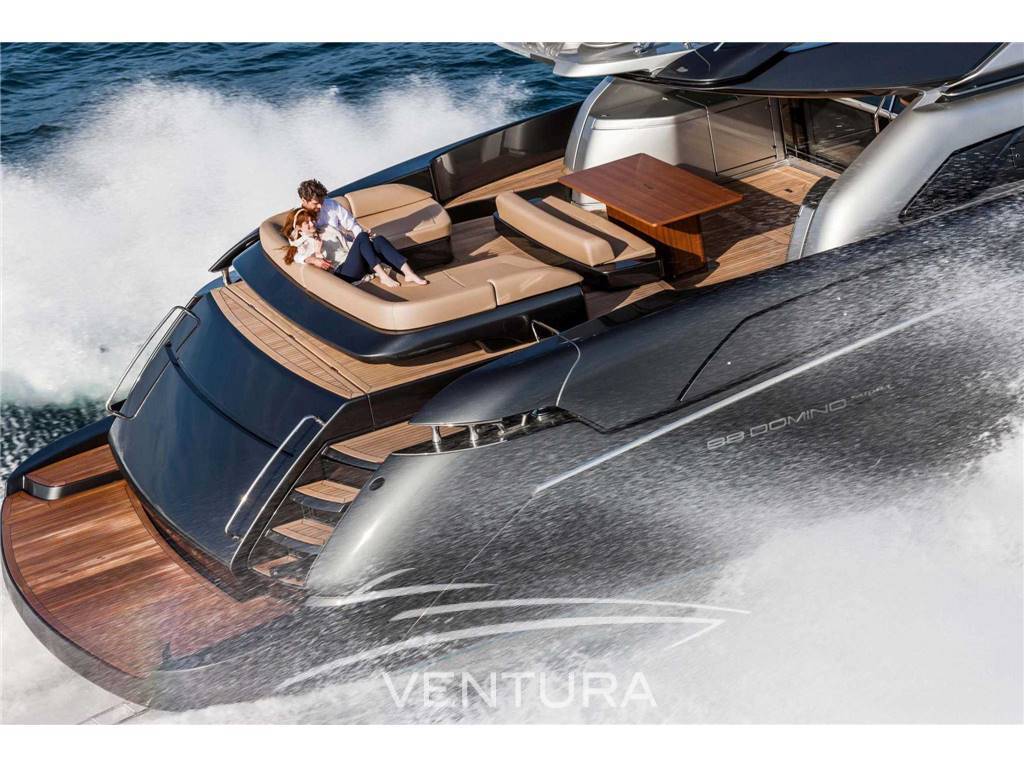

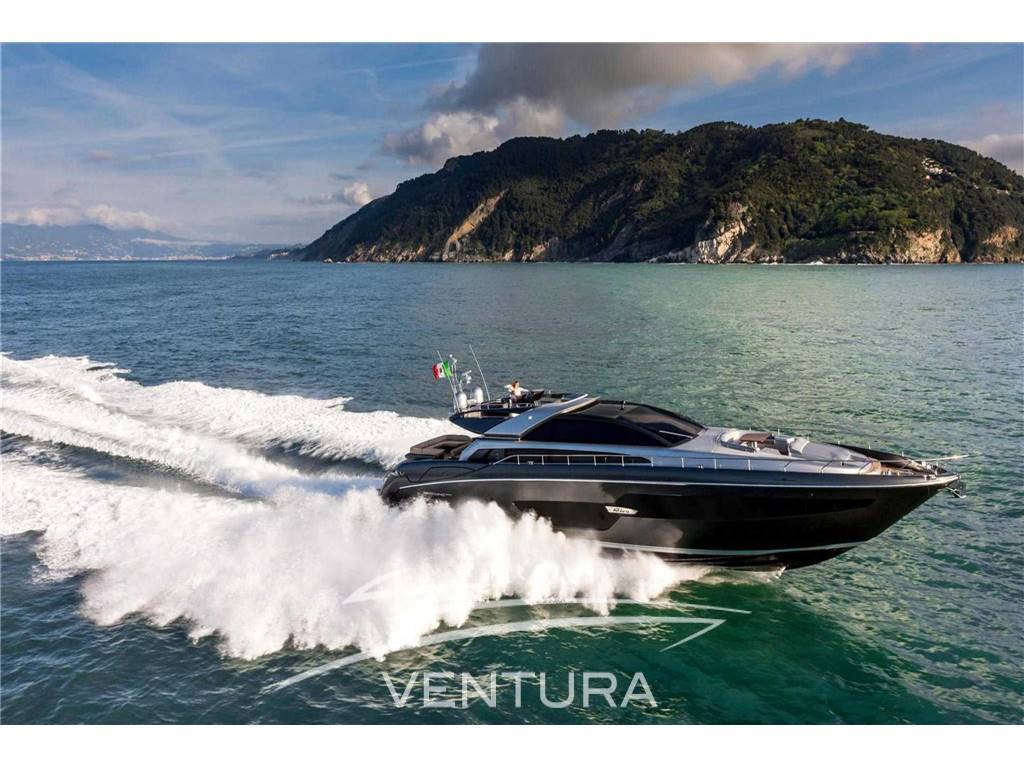

Riva Domino super (2017)

Notas de la instrumentación

Radar: Furuno

Chart Plotter:
2 x Furuno Navnet 3D plotters at Main Helm (Keyboard Control)
1 X Furuno Touch Screen Display at Sports Bridge Helm

Speed Log: Simrad

Auto Pilot: Simrad

Compass: Rivera SRL, Urania Magnetic Compass

GPS: Simrad

AIS: Furuno Class B - TX-FX FA 50

Helm screens: 3 x 19” Masters Displays at the Main Helm and 1 Furuno Touch Screen Display on the Sports Flybridge

VHF Primary / Secondary: Simrad HS90

Portable Radio (crew): 4 x VHF, Icom IC-M25

Yacht Monitoring & Control: 19” Masters Touch screen at Main Helm with a 15” display in the crew dinette.

CCTV: Recording system for CCTV – with Cameras located in the engine room, Cockpit and Lower Lobby.

Night vision Camera: Flir

Fire Detection System: Installed in the Engine room and Crew Area. Engine Room fitted with
FM-200 Marine Fire Suppression System.

Notas de armamento

Stabilisers: Gyro stabiliser – 2 x Seakeeper Series 9, located aft end of engine room

Bow / Stern Thrusters: Trac , Hydraulic

Air Conditioning: Super Tropical Air Conditioning Upgrade – Dometic / Condaria,
180,000 BTU supplied by two 90,000 BTU chillers.

Engine Room Ventilation: Gianneschi Fans.

Water Maker: Idromar - Producing 180L/h

Boilers: 2 x Electric 80 litre 1.2kw

Toilets: Planus – Marine toilet vortex system.

Electrical Equipment
Shore Power: 1 x 63A Shore Power Connection with Cable.

Sockets: European & USB sockets fitted to the interior

Lighting:
Interior & Exterior LED lighting
Dimmer Switches fitted to interior and Cockpit Ceiling Lighting. Note they are not installed in the Ensuites and Crew Area.

Blinds & Curtains: Manual Control throughout the interior.

Underwater Lights: 6 x Ocean LED lights in White, two across the Stern and two either side.

Stern Saloon Door: Manual

Bridge Door: Port Side Electric Opening and Locking door

Deck Equipment

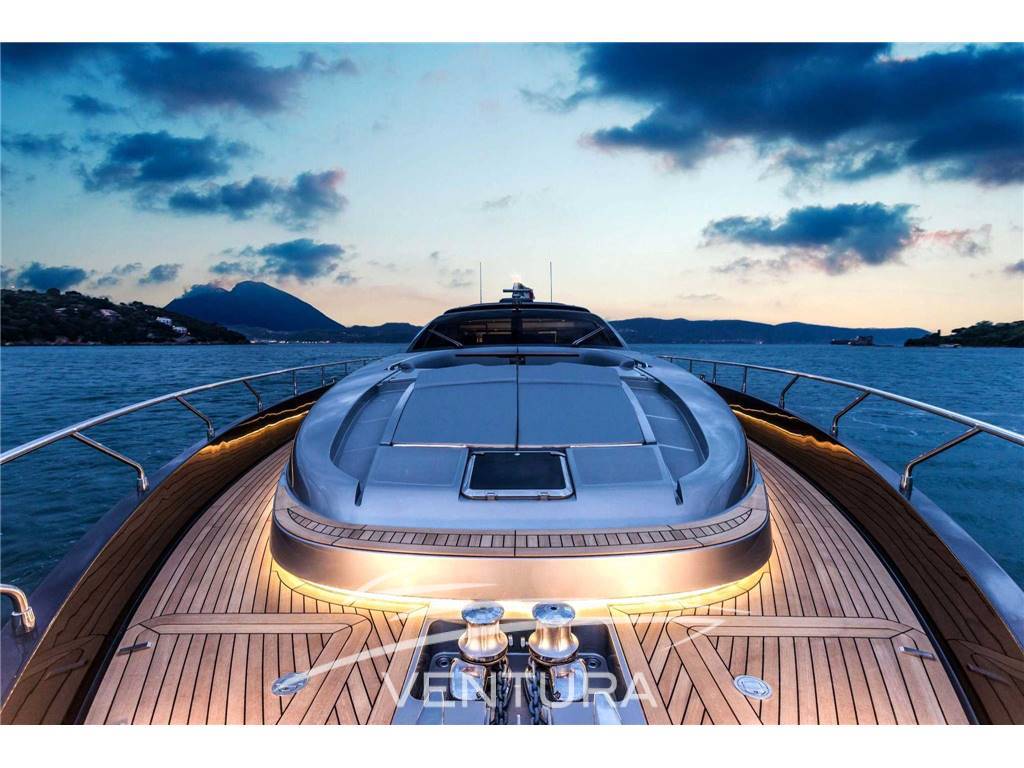

Anchor Windlass: 2 x Lofran’s Project X4 Vertical Gypsy and Capstan drum, 2700w, 24V.

Anchors:
2 x Stainless Steel Polished Anchors:
Starboard Side 50kg
Port Side 35Kg

Chain:
Starboard Side - 100 metres, 12 mm galvanised chain.
Port Side - 65 metres, 12 mm galvanised chain.


Stern Capstans: Two Lofrans 24V Vertical Capstans (1 on both the Port and Starboard Side)

Passerelle: Besenzoni, Polished Stainless Steel.

Swim Platform: Hydraulic Lifting Platform

Swim Shower: Retractable shower located on the Port Side Aft

Swim Ladder:
2 x Swim Ladders located on the platform. Port Side, Concealed Electro-Hydraulic Stainless-Steel Ladder, Starboard Side Manual

Washdown Deck Connections: Deck Wash feed located in the step riser locker in the Port Side Steps to the Cockpit.
